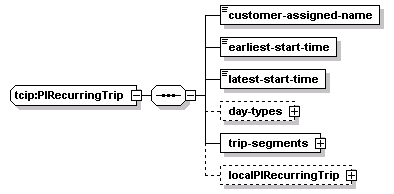

complexType tcip:PIRecurringTrip

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	customer-assigned-name earliest-start-time latest-start-time day-types trip-segments localPIRecurringTrip
used by	element  tcip:PICustomerProfile/recurring-trips/recurring-trip
source	<xs:complexType name="PIRecurringTrip">   <xs:sequence>     <xs:element name="customer-assigned-name" type="CPT-Footnote"/>     <!-- e.g. &quot;to work&quot; -->     <xs:element name="earliest-start-time" type="CPT-DateTime"/>     <xs:element name="latest-start-time" type="CPT-DateTime"/>     <xs:element name="day-types" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="day-type" type="SCH-DayType"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="trip-segments">       <xs:complexType>         <xs:sequence maxOccurs="15">           <xs:element name="trip-segment" type="PIRecurringTripSegment"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localPIRecurringTrip" type="local:PIRecurringTrip" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIRecurringTrip/customer-assigned-name

diagram
type	tcip:CPT-Footnote
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-assigned-name" type="CPT-Footnote"/>

element tcip:PIRecurringTrip/earliest-start-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="earliest-start-time" type="CPT-DateTime"/>

element tcip:PIRecurringTrip/latest-start-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="latest-start-time" type="CPT-DateTime"/>

element tcip:PIRecurringTrip/day-types

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	day-type
source	<xs:element name="day-types" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="day-type" type="SCH-DayType"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:PIRecurringTrip/day-types/day-type

diagram
type	tcip:SCH-DayType
properties	isRef  0 content  simple
source	<xs:element name="day-type" type="SCH-DayType"/>

element tcip:PIRecurringTrip/trip-segments

diagram
properties	isRef  0 content  complex
children	trip-segment
source	<xs:element name="trip-segments">   <xs:complexType>     <xs:sequence maxOccurs="15">       <xs:element name="trip-segment" type="PIRecurringTripSegment"/>     </xs:sequence>   </xs:complexType> </xs:element>

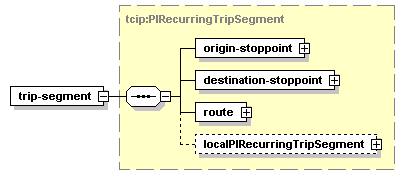

element tcip:PIRecurringTrip/trip-segments/trip-segment

diagram
type	tcip:PIRecurringTripSegment
properties	isRef  0 content  complex
children	origin-stoppoint destination-stoppoint route localPIRecurringTripSegment
source	<xs:element name="trip-segment" type="PIRecurringTripSegment"/>

element tcip:PIRecurringTrip/localPIRecurringTrip

diagram
type	PIRecurringTrip
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPIRecurringTrip" type="local:PIRecurringTrip" minOccurs="0"/>
