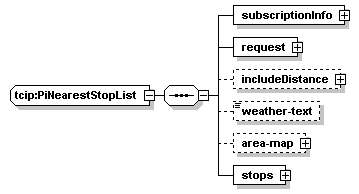

complexType tcip:PiNearestStopList

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo request includeDistance weather-text area-map stops
used by	element  tcip:piNearestStopList
source	<xs:complexType name="PiNearestStopList">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="request" type="PINearestStopRequest"/>     <xs:element name="includeDistance" type="lrms:Distance" minOccurs="0"/>     <xs:element name="weather-text" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="area-map" type="PIMap" minOccurs="0"/>     <xs:element name="stops">       <xs:complexType>         <xs:sequence maxOccurs="20">           <xs:element name="stop" type="PINearestStop"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:PiNearestStopList/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:PiNearestStopList/request

diagram
type	tcip:PINearestStopRequest
properties	isRef  0 content  complex
children	location route rtDirection stopAttributes
source	<xs:element name="request" type="PINearestStopRequest"/>

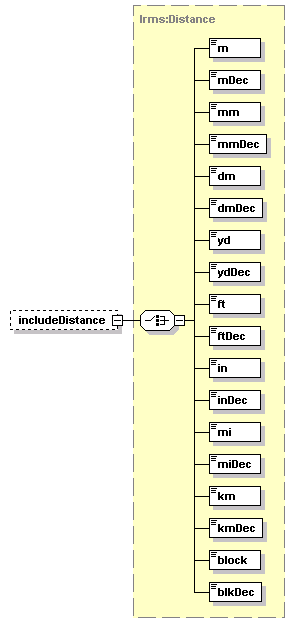

element tcip:PiNearestStopList/includeDistance

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="includeDistance" type="lrms:Distance" minOccurs="0"/>

element tcip:PiNearestStopList/weather-text

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="weather-text" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiNearestStopList/area-map

diagram
type	tcip:PIMap
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	map-image map-format map-URL map-headline map-footnote itineraryID
source	<xs:element name="area-map" type="PIMap" minOccurs="0"/>

element tcip:PiNearestStopList/stops

diagram
properties	isRef  0 content  complex
children	stop
source	<xs:element name="stops">   <xs:complexType>     <xs:sequence maxOccurs="20">       <xs:element name="stop" type="PINearestStop"/>     </xs:sequence>   </xs:complexType> </xs:element>

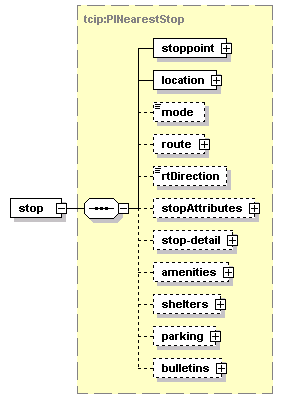

element tcip:PiNearestStopList/stops/stop

diagram
type	tcip:PINearestStop
properties	isRef  0 content  complex
children	stoppoint location mode route rtDirection stopAttributes stop-detail amenities shelters parking bulletins
source	<xs:element name="stop" type="PINearestStop"/>
