complexType tcip:PiNearestStopListSub
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo request includeDistance
used by
element tcip:piNearestStopListSub
source <xs:complexType name="PiNearestStopListSub">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="request" type="PINearestStopRequest"/>
    <xs:element name="includeDistance" type="lrms:Distance" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

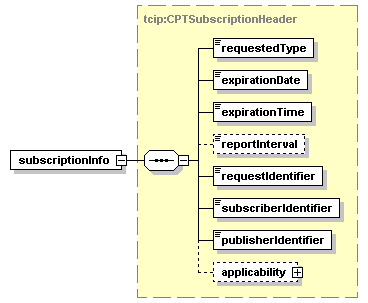

element tcip:PiNearestStopListSub/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:PiNearestStopListSub/request
diagram
type tcip:PINearestStopRequest
properties
isRef 0
content complex
children location route rtDirection stopAttributes
source <xs:element name="request" type="PINearestStopRequest"/>

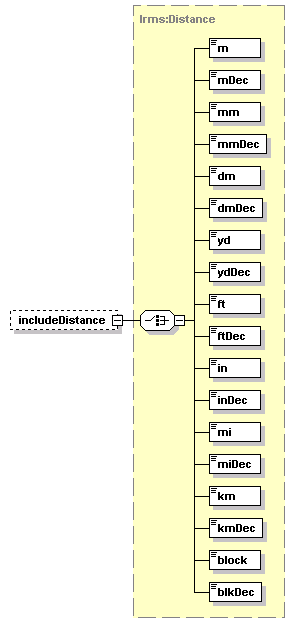

element tcip:PiNearestStopListSub/includeDistance
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="includeDistance" type="lrms:Distance" minOccurs="0"/>
