complexType tcip:PiServiceBulletinsList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionHeader routes bulletins
used by
element tcip:piServiceBulletinsList
source <xs:complexType name="PiServiceBulletinsList">
  <xs:sequence>
    <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>
    <xs:element name="routes">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="bulletins" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="bulletin" type="PIServiceBulletin"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:PiServiceBulletinsList/subscriptionHeader
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>

element tcip:PiServiceBulletinsList/routes
diagram
properties
isRef 0
content complex
children route
source <xs:element name="routes">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiServiceBulletinsList/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:PiServiceBulletinsList/bulletins
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children bulletin
source <xs:element name="bulletins" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="bulletin" type="PIServiceBulletin"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

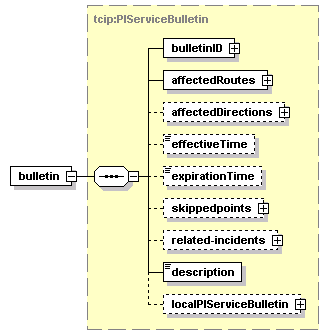

element tcip:PiServiceBulletinsList/bulletins/bulletin
diagram
type tcip:PIServiceBulletin
properties
isRef 0
content complex
children bulletinID affectedRoutes affectedDirections effectiveTime expirationTime skippedpoints related-incidents description localPIServiceBulletin
source <xs:element name="bulletin" type="PIServiceBulletin"/>
