| element | tcip:piTripItineraryListSub |
<xs:sequence>
<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
<xs:element name="trip-request" type="PITripRequest"/>
</xs:sequence>
</xs:complexType>
| diagram | |
||
| namespace | http://www.TCIP-Adopted-03-00-01 | ||
| children | subscriptionInfo trip-request | ||
| used by |
|
||
| source | <xs:complexType name="PiTripItineraryListSub"> <xs:sequence> <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/> <xs:element name="trip-request" type="PITripRequest"/> </xs:sequence> </xs:complexType> |

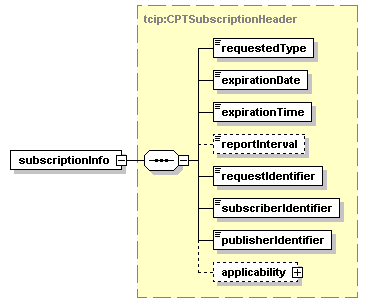

| diagram |  |
||||
| type | tcip:CPTSubscriptionHeader | ||||
| properties |
|
||||
| children | requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability | ||||
| source | <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/> |

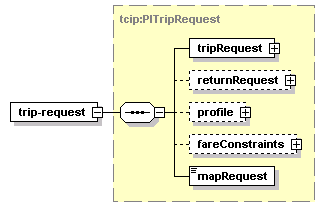

| diagram |  |
||||
| type | tcip:PITripRequest | ||||
| properties |
|
||||
| children | tripRequest returnRequest profile fareConstraints mapRequest | ||||
| source | <xs:element name="trip-request" type="PITripRequest"/> |
