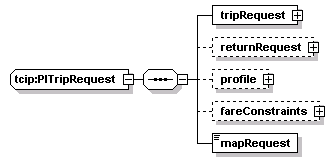

complexType tcip:PITripRequest
diagram
namespace http://www.TCIP-Adopted-03-00-01
children tripRequest returnRequest profile fareConstraints mapRequest
used by
elements tcip:PiTripItineraryList/trip-request tcip:PiTripItineraryListSub/trip-request
source <xs:complexType name="PITripRequest">
  <xs:sequence>
    <xs:element name="tripRequest" type="atis:RouteRequest"/>
    <xs:element name="returnRequest" type="atis:RouteRequest" minOccurs="0"/>
    <xs:element name="profile" type="PITravelerProfile" minOccurs="0"/>
    <xs:element name="fareConstraints" type="PITripRequestFareConstraints" minOccurs="0"/>
    <xs:element name="mapRequest" type="CPT-Boolean"/>
  </xs:sequence>
</xs:complexType>

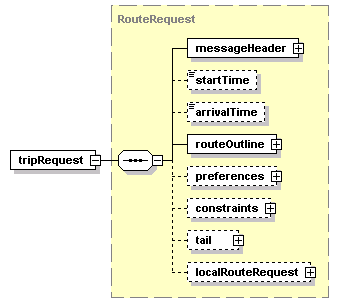

element tcip:PITripRequest/tripRequest
diagram
type RouteRequest
properties
isRef 0
content complex
children messageHeader startTime arrivalTime routeOutline preferences constraints tail localRouteRequest
source <xs:element name="tripRequest" type="atis:RouteRequest"/>

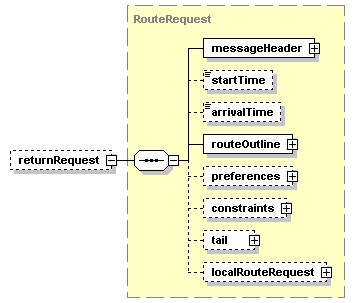

element tcip:PITripRequest/returnRequest
diagram
type RouteRequest
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children messageHeader startTime arrivalTime routeOutline preferences constraints tail localRouteRequest
source <xs:element name="returnRequest" type="atis:RouteRequest" minOccurs="0"/>

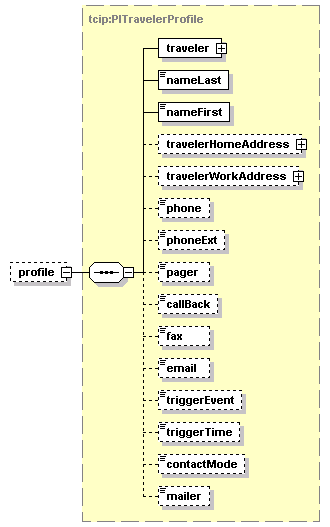

element tcip:PITripRequest/profile
diagram
type tcip:PITravelerProfile
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children traveler nameLast nameFirst travelerHomeAddress travelerWorkAddress phone phoneExt pager callBack fax email triggerEvent triggerTime contactMode mailer
source <xs:element name="profile" type="PITravelerProfile" minOccurs="0"/>

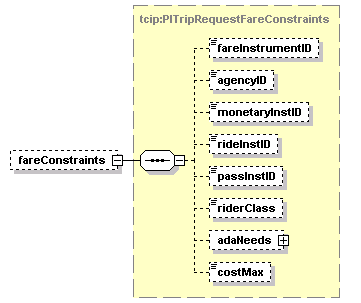

element tcip:PITripRequest/fareConstraints
diagram
type tcip:PITripRequestFareConstraints
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children fareInstrumentID agencyID monetaryInstID rideInstID passInstID riderClass adaNeeds costMax
source <xs:element name="fareConstraints" type="PITripRequestFareConstraints" minOccurs="0"/>

element tcip:PITripRequest/mapRequest
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="mapRequest" type="CPT-Boolean"/>
