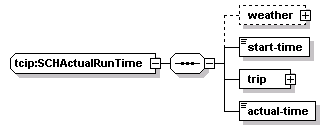

complexType tcip:SCHActualRunTime
diagram
namespace http://www.TCIP-Adopted-03-00-01
children weather start-time trip actual-time
used by
element tcip:SCHActualRunningTimeData/actuals/actual
source <xs:complexType name="SCHActualRunTime">
  <xs:sequence>
    <xs:element name="weather" type="atis:WeatherInformation" minOccurs="0"/>
    <xs:element name="start-time" type="CPT-DateTime"/>
    <!-- when the measurement started -->
    <xs:element name="trip" type="SCHTripIden"/>
    <xs:element name="actual-time" type="CPT-Duration"/>
  </xs:sequence>
</xs:complexType>

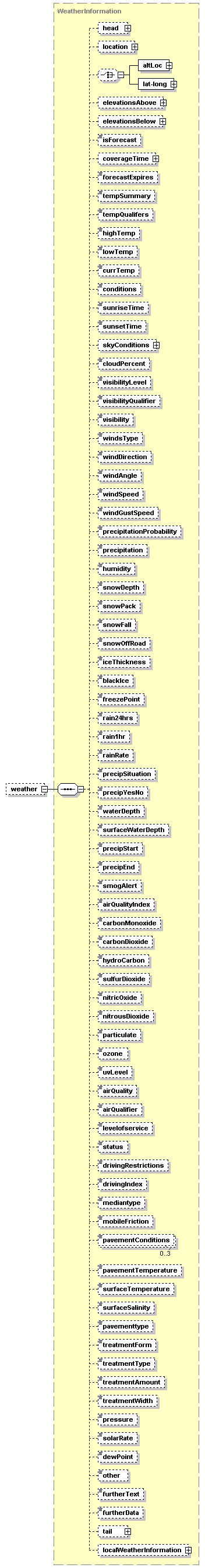

element tcip:SCHActualRunTime/weather
diagram
type WeatherInformation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children head location altLoc lat-long elevationsAbove elevationsBelow isForecast coverageTime forecastExpires tempSummary tempQualifers highTemp lowTemp currTemp conditions sunriseTime sunsetTime skyConditions cloudPercent visibilityLevel visibilityQualifier visibility windsType windDirection windAngle windSpeed windGustSpeed precipitationProbability precipitation humidity snowDepth snowPack snowFall snowOffRoad iceThickness blackIce freezePoint rain24hrs rain1hr rainRate precipSituation precipYesNo waterDepth surfaceWaterDepth precipStart precipEnd smogAlert airQualityIndex carbonMonoxide carbonDioxide hydroCarbon sulfurDioxide nitricOxide nitrousDioxide particulate ozone uvLevel airQuality airQualifier levelofservice status drivingRestrictions drivingIndex mediantype mobileFriction pavementConditions pavementTemperature surfaceTemperature surfaceSalinity pavementtype treatmentForm treatmentType treatmentAmount treatmentWidth pressure solarRate dewPoint other furtherText furtherData tail localWeatherInformation
source <xs:element name="weather" type="atis:WeatherInformation" minOccurs="0"/>

element tcip:SCHActualRunTime/start-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="start-time" type="CPT-DateTime"/>

element tcip:SCHActualRunTime/trip
diagram
type tcip:SCHTripIden
properties
isRef 0
content complex
children trip-id agency-id designator
source <xs:element name="trip" type="SCHTripIden"/>

element tcip:SCHActualRunTime/actual-time
diagram
type tcip:CPT-Duration
properties
isRef 0
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="actual-time" type="CPT-Duration"/>
