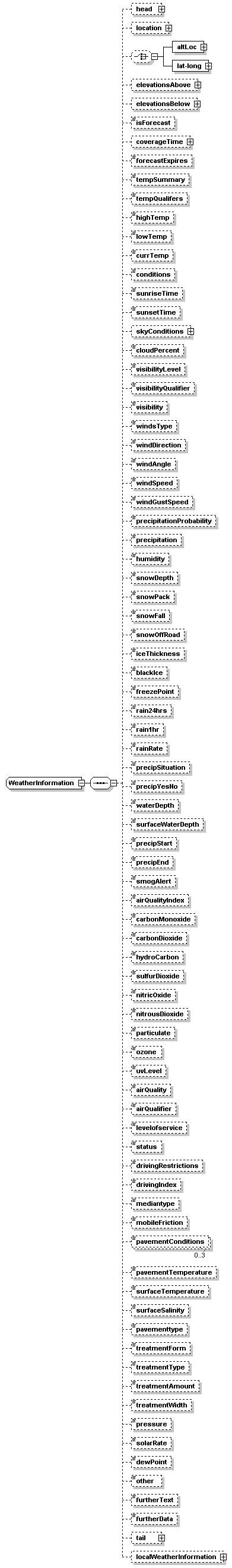

complexType WeatherInformation

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	head location altLoc lat-long elevationsAbove elevationsBelow isForecast coverageTime forecastExpires tempSummary tempQualifers highTemp lowTemp currTemp conditions sunriseTime sunsetTime skyConditions cloudPercent visibilityLevel visibilityQualifier visibility windsType windDirection windAngle windSpeed windGustSpeed precipitationProbability precipitation humidity snowDepth snowPack snowFall snowOffRoad iceThickness blackIce freezePoint rain24hrs rain1hr rainRate precipSituation precipYesNo waterDepth surfaceWaterDepth precipStart precipEnd smogAlert airQualityIndex carbonMonoxide carbonDioxide hydroCarbon sulfurDioxide nitricOxide nitrousDioxide particulate ozone uvLevel airQuality airQualifier levelofservice status drivingRestrictions drivingIndex mediantype mobileFriction pavementConditions pavementTemperature surfaceTemperature surfaceSalinity pavementtype treatmentForm treatmentType treatmentAmount treatmentWidth pressure solarRate dewPoint other furtherText furtherData tail localWeatherInformation
used by	elements  SubRoute/weather tcip:SCHActualRunTime/weather ResponseGroup/weatherReport
source	<xs:complexType name="WeatherInformation">   <xs:sequence>     <xs:element name="head" type="Head" minOccurs="0"/>     <xs:element name="location" type="lrms:LocationReference" minOccurs="0"/>     <!-- location for which this applies -->     <xs:choice minOccurs="0">       <xs:element name="altLoc" type="lrms:AdminAreaGroup"/>       <!-- Simple named places -->       <xs:element name="lat-long" type="LocationPoint"/>       <!-- Point and raduis locations -->     </xs:choice>     <!-- This may be used as an alt loc method -->     <xs:element name="elevationsAbove" type="lrms:Height" minOccurs="0"/>     <xs:element name="elevationsBelow" type="lrms:Height" minOccurs="0"/>     <!-- remainder of message content is          applied to elevations above or below          these amounts if they are present -->     <xs:element name="isForecast" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:boolean"/>       </xs:simpleType>     </xs:element>     <!-- forecast or predicted period -->     <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>     <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>     <!-- temperatures -->     <xs:element name="tempSummary" type="itis:Temperature" minOccurs="0"/>     <xs:element name="tempQualifers" type="itis:Qualifiers" minOccurs="0"/>     <xs:element name="highTemp" type="ntcip:EssMaxTemp" minOccurs="0"/>     <!-- in tenths of degrees C -->     <xs:element name="lowTemp" type="ntcip:EssMinTemp" minOccurs="0"/>     <!-- in tenths of degrees C -->     <xs:element name="currTemp" type="ntcip:EssAirTemperature" minOccurs="0"/>     <!-- in tenths of degrees C          sky,  wind,  and sun conditions -->     <xs:element name="conditions" type="itis:WeatherConditions" minOccurs="0"/>     <!-- gross conditions -->     <xs:element name="sunriseTime" type="Time" minOccurs="0"/>     <xs:element name="sunsetTime" type="Time" minOccurs="0"/>     <xs:element name="skyConditions" type="Weather-SkyConditions" minOccurs="0"/>     <!-- ITIS codes -->     <xs:element name="cloudPercent" type="ntcip:EssCloudSituation" minOccurs="0"/>     <xs:element name="visibilityLevel" type="itis:VisibilityAndAirQuality" minOccurs="0"/>     <!-- visablity limits -->     <xs:element name="visibilityQualifier" type="itis:Qualifiers" minOccurs="0"/>     <xs:element name="visibility" type="ntcip:EssVisibility" minOccurs="0"/>     <!-- in tenths of a meter -->     <xs:element name="windsType" type="itis:Winds" minOccurs="0"/>     <!-- similar to NTCIP.EssWindSituation -->     <xs:element name="windDirection" type="CompassDirection" minOccurs="0"/>     <!-- in compass point phrases -->     <xs:element name="windAngle" type="ntcip:EssAvgWindDirection" minOccurs="0"/>     <!-- expressed in degrees -->     <xs:element name="windSpeed" type="ntcip:EssAvgWindSpeed" minOccurs="0"/>     <!-- tenths of meters per sec -->     <xs:element name="windGustSpeed" type="ntcip:EssAvgWindSpeed" minOccurs="0"/>     <!-- tenths of meters per sec          water,  rain,  ice,  snow events -->     <xs:element name="precipitationProbability" type="Percent" minOccurs="0"/>     <!-- quality of this information -->     <xs:element name="precipitation" type="itis:Precipitation" minOccurs="0"/>     <xs:element name="humidity" type="ntcip:EssRelativeHumidity" minOccurs="0"/>     <!-- percent. -->     <xs:element name="snowDepth" type="ntcip:EssRoadwaySnowDepth" minOccurs="0"/>     <!-- in centimeters -->     <xs:element name="snowPack" type="ntcip:EssRoadwaySnowPackDepth" minOccurs="0"/>     <!-- in centimeters -->     <xs:element name="snowFall" type="ntcip:EssSnowfallAccumRate" minOccurs="0"/>     <!-- in centimeters -->     <xs:element name="snowOffRoad" type="ntcip:EssAdjacentSnowDepth" minOccurs="0"/>     <!-- in centimeters -->     <xs:element name="iceThickness" type="ntcip:EssIceThickness" minOccurs="0"/>     <!-- in millimeters -->     <xs:element name="blackIce" type="ntcip:EssSurfaceBlackIceSignal" minOccurs="0"/>     <!-- in millimeters -->     <xs:element name="freezePoint" type="ntcip:EssSurfaceFreezePoint" minOccurs="0"/>     <!-- in tenths of degrees C -->     <xs:element name="rain24hrs" type="ntcip:EssPrecipitation24Hours" minOccurs="0"/>     <!-- in tenths of kilograms per square meter          (for rain,  this is equivalent to tenths of  millimeters) -->     <xs:element name="rain1hr" type="ntcip:EssPrecipitationOneHour" minOccurs="0"/>     <!-- in tenths of kilograms per square meter          (for rain,  this is approximately tenths of  millimeters) -->     <xs:element name="rainRate" type="ntcip:EssPrecipRate" minOccurs="0"/>     <!-- rate in tenths of grams per square meter per second          (for rain,  this is approximately  to 0.36 mm/hr) -->     <xs:element name="precipSituation" type="ntcip:EssPrecipSituation" minOccurs="0"/>     <xs:element name="precipYesNo" type="ntcip:EssPrecipYesNo" minOccurs="0"/>     <xs:element name="waterDepth" type="ntcip:EssWaterDepth" minOccurs="0"/>     <!-- in centimeters -->     <xs:element name="surfaceWaterDepth" type="ntcip:EssSurfaceWaterDepth" minOccurs="0"/>     <!-- in centimeters -->     <xs:element name="precipStart" type="DateTimePair" minOccurs="0"/>     <xs:element name="precipEnd" type="DateTimePair" minOccurs="0"/>     <!-- pollution and air quality  (formerly another message) -->     <xs:element name="smogAlert" type="Pollution-SmogAlert" minOccurs="0"/>     <xs:element name="airQualityIndex" type="Pollution-AirQualityIndex" minOccurs="0"/>     <xs:element name="carbonMonoxide" type="ntcip:EssCO" minOccurs="0"/>     <!-- in parts per million -->     <xs:element name="carbonDioxide" type="ntcip:EssCO2" minOccurs="0"/>     <!-- in parts per billion -->     <xs:element name="hydroCarbon" type="Pollution-HydroCarbon" minOccurs="0"/>     <xs:element name="sulfurDioxide" type="ntcip:EssSO2" minOccurs="0"/>     <!-- in parts per billion -->     <xs:element name="nitricOxide" type="ntcip:EssNO" minOccurs="0"/>     <!-- in parts per million -->     <xs:element name="nitrousDioxide" type="ntcip:EssNO2" minOccurs="0"/>     <!-- in parts per billion -->     <xs:element name="particulate" type="ntcip:EssPM10" minOccurs="0"/>     <!-- in parts per million micrograms per cubic meter. -->     <xs:element name="ozone" type="ntcip:EssO3" minOccurs="0"/>     <!-- in parts per one hundred billion -->     <xs:element name="uvLevel" type="UVLevel" minOccurs="0"/>     <xs:element name="airQuality" type="itis:VisibilityAndAirQuality" minOccurs="0"/>     <!-- visablity limits -->     <xs:element name="airQualifier" type="itis:Qualifiers" minOccurs="0"/>     <!-- road treatments and conditions -->     <xs:element name="levelofservice" type="tmdd:Link-level-of-service" minOccurs="0"/>     <xs:element name="status" type="itis:Closures" minOccurs="0"/>     <xs:element name="drivingRestrictions" type="itis:WinterDrivingRestrictions" minOccurs="0"/>     <xs:element name="drivingIndex" type="itis:WinterDrivingIndex" minOccurs="0"/>     <xs:element name="mediantype" type="tmdd:Link-median-type" minOccurs="0"/>     <xs:element name="mobileFriction" type="ntcip:EssMobileFriction" minOccurs="0"/>     <xs:element name="pavementConditions" type="itis:PavementConditions" minOccurs="0" maxOccurs="3"/>     <!-- includes data on roadway objects and ice and snow types -->     <xs:element name="pavementTemperature" type="ntcip:EssPavementTemperature" minOccurs="0"/>     <xs:element name="surfaceTemperature" type="ntcip:EssSurfaceTemperature" minOccurs="0"/>     <xs:element name="surfaceSalinity" type="ntcip:EssSurfaceSalinity" minOccurs="0"/>     <xs:element name="pavementtype" type="tmdd:Link-pavement-type" minOccurs="0"/>     <!-- similar to NTCIP.EssPavementType -->     <xs:element name="treatmentForm" type="ntcip:EssPaveTreatProductForm" minOccurs="0"/>     <xs:element name="treatmentType" type="ntcip:EssPaveTreatProductType" minOccurs="0"/>     <xs:element name="treatmentAmount" type="ntcip:EssPaveTreatmentAmount" minOccurs="0"/>     <xs:element name="treatmentWidth" type="ntcip:EssPaveTreatmentWidth" minOccurs="0"/>     <!-- other enviromental data -->     <xs:element name="pressure" type="ntcip:EssAtmosphericPressure" minOccurs="0"/>     <!-- in 1/10ths of millibars,  a.k.a. tenths of hectoPascals -->     <xs:element name="solarRate" type="ntcip:EssSolarRadiation" minOccurs="0"/>     <!-- in Joules per square meter,  integrated over the 24 hours -->     <xs:element name="dewPoint" type="ntcip:EssDewpointTemp" minOccurs="0"/>     <!-- in tenths of degrees C -->     <xs:element name="other" type="ntcip:ESS-other" minOccurs="0"/>     <!-- ess free text -->     <xs:element name="furtherText" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:minLength value="1"/>           <xs:maxLength value="1000"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <!-- misc free text such as NSW messages -->     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <!-- links to images,  maps,  or other data -->     <xs:element name="tail" type="Tail" minOccurs="0"/>     <xs:element name="localWeatherInformation" type="local:WeatherInformation" minOccurs="0"/>   </xs:sequence> </xs:complexType>

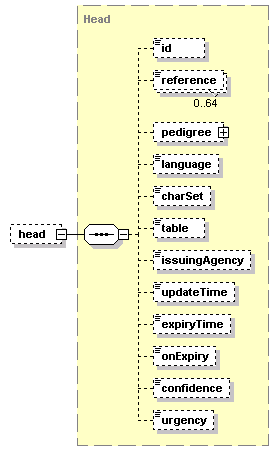

element WeatherInformation/head

diagram
type	Head
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source	<xs:element name="head" type="Head" minOccurs="0"/>

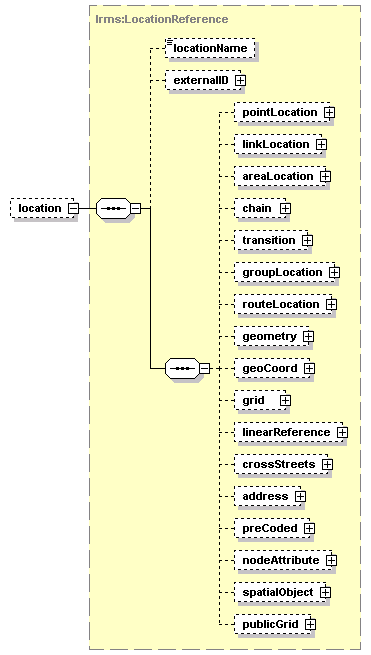

element WeatherInformation/location

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="location" type="lrms:LocationReference" minOccurs="0"/>

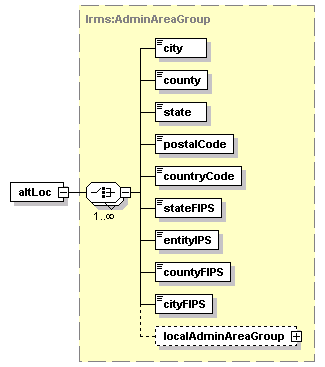

element WeatherInformation/altLoc

diagram
type	lrms:AdminAreaGroup
properties	isRef  0 content  complex
children	city county state postalCode countryCode stateFIPS entityIPS countyFIPS cityFIPS localAdminAreaGroup
source	<xs:element name="altLoc" type="lrms:AdminAreaGroup"/>

element WeatherInformation/lat-long

diagram
type	LocationPoint
properties	isRef  0 content  complex
children	lat long vertical radius
source	<xs:element name="lat-long" type="LocationPoint"/>

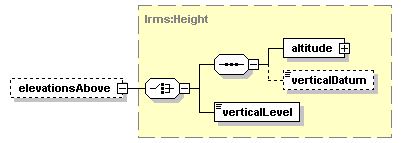

element WeatherInformation/elevationsAbove

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="elevationsAbove" type="lrms:Height" minOccurs="0"/>

element WeatherInformation/elevationsBelow

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="elevationsBelow" type="lrms:Height" minOccurs="0"/>

element WeatherInformation/isForecast

diagram
type	restriction of xs:boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="isForecast" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:boolean"/>   </xs:simpleType> </xs:element>

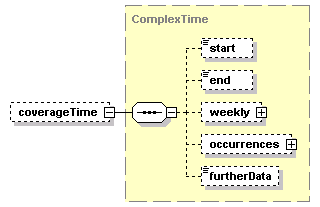

element WeatherInformation/coverageTime

diagram
type	ComplexTime
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end weekly occurrences furtherData
source	<xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>

element WeatherInformation/forecastExpires

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>

element WeatherInformation/tempSummary

diagram
type	itis:Temperature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tempSummary" type="itis:Temperature" minOccurs="0"/>

element WeatherInformation/tempQualifers

diagram
type	itis:Qualifiers
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tempQualifers" type="itis:Qualifiers" minOccurs="0"/>

element WeatherInformation/highTemp

diagram
type	ntcip:EssMaxTemp
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="highTemp" type="ntcip:EssMaxTemp" minOccurs="0"/>

element WeatherInformation/lowTemp

diagram
type	ntcip:EssMinTemp
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="lowTemp" type="ntcip:EssMinTemp" minOccurs="0"/>

element WeatherInformation/currTemp

diagram
type	ntcip:EssAirTemperature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="currTemp" type="ntcip:EssAirTemperature" minOccurs="0"/>

element WeatherInformation/conditions

diagram
type	itis:WeatherConditions
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="conditions" type="itis:WeatherConditions" minOccurs="0"/>

element WeatherInformation/sunriseTime

diagram
type	Time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  6 maxLength  10
source	<xs:element name="sunriseTime" type="Time" minOccurs="0"/>

element WeatherInformation/sunsetTime

diagram
type	Time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  6 maxLength  10
source	<xs:element name="sunsetTime" type="Time" minOccurs="0"/>

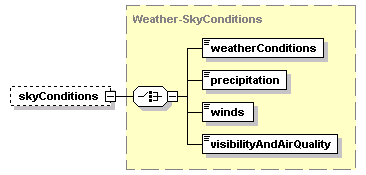

element WeatherInformation/skyConditions

diagram
type	Weather-SkyConditions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	weatherConditions precipitation winds visibilityAndAirQuality
source	<xs:element name="skyConditions" type="Weather-SkyConditions" minOccurs="0"/>

element WeatherInformation/cloudPercent

diagram
type	ntcip:EssCloudSituation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="cloudPercent" type="ntcip:EssCloudSituation" minOccurs="0"/>

element WeatherInformation/visibilityLevel

diagram
type	itis:VisibilityAndAirQuality
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="visibilityLevel" type="itis:VisibilityAndAirQuality" minOccurs="0"/>

element WeatherInformation/visibilityQualifier

diagram
type	itis:Qualifiers
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="visibilityQualifier" type="itis:Qualifiers" minOccurs="0"/>

element WeatherInformation/visibility

diagram
type	ntcip:EssVisibility
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  1000001
source	<xs:element name="visibility" type="ntcip:EssVisibility" minOccurs="0"/>

element WeatherInformation/windsType

diagram
type	itis:Winds
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="windsType" type="itis:Winds" minOccurs="0"/>

element WeatherInformation/windDirection

diagram
type	CompassDirection
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="windDirection" type="CompassDirection" minOccurs="0"/>

element WeatherInformation/windAngle

diagram
type	ntcip:EssAvgWindDirection
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  361
source	<xs:element name="windAngle" type="ntcip:EssAvgWindDirection" minOccurs="0"/>

element WeatherInformation/windSpeed

diagram
type	ntcip:EssAvgWindSpeed
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="windSpeed" type="ntcip:EssAvgWindSpeed" minOccurs="0"/>

element WeatherInformation/windGustSpeed

diagram
type	ntcip:EssAvgWindSpeed
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="windGustSpeed" type="ntcip:EssAvgWindSpeed" minOccurs="0"/>

element WeatherInformation/precipitationProbability

diagram
type	Percent
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  100
source	<xs:element name="precipitationProbability" type="Percent" minOccurs="0"/>

element WeatherInformation/precipitation

diagram
type	itis:Precipitation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="precipitation" type="itis:Precipitation" minOccurs="0"/>

element WeatherInformation/humidity

diagram
type	ntcip:EssRelativeHumidity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  101
source	<xs:element name="humidity" type="ntcip:EssRelativeHumidity" minOccurs="0"/>

element WeatherInformation/snowDepth

diagram
type	ntcip:EssRoadwaySnowDepth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  3001
source	<xs:element name="snowDepth" type="ntcip:EssRoadwaySnowDepth" minOccurs="0"/>

element WeatherInformation/snowPack

diagram
type	ntcip:EssRoadwaySnowPackDepth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  3001
source	<xs:element name="snowPack" type="ntcip:EssRoadwaySnowPackDepth" minOccurs="0"/>

element WeatherInformation/snowFall

diagram
type	ntcip:EssSnowfallAccumRate
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="snowFall" type="ntcip:EssSnowfallAccumRate" minOccurs="0"/>

element WeatherInformation/snowOffRoad

diagram
type	ntcip:EssAdjacentSnowDepth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  3001
source	<xs:element name="snowOffRoad" type="ntcip:EssAdjacentSnowDepth" minOccurs="0"/>

element WeatherInformation/iceThickness

diagram
type	ntcip:EssIceThickness
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="iceThickness" type="ntcip:EssIceThickness" minOccurs="0"/>

element WeatherInformation/blackIce

diagram
type	ntcip:EssSurfaceBlackIceSignal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="blackIce" type="ntcip:EssSurfaceBlackIceSignal" minOccurs="0"/>

element WeatherInformation/freezePoint

diagram
type	ntcip:EssSurfaceFreezePoint
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="freezePoint" type="ntcip:EssSurfaceFreezePoint" minOccurs="0"/>

element WeatherInformation/rain24hrs

diagram
type	ntcip:EssPrecipitation24Hours
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="rain24hrs" type="ntcip:EssPrecipitation24Hours" minOccurs="0"/>

element WeatherInformation/rain1hr

diagram
type	ntcip:EssPrecipitationOneHour
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="rain1hr" type="ntcip:EssPrecipitationOneHour" minOccurs="0"/>

element WeatherInformation/rainRate

diagram
type	ntcip:EssPrecipRate
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="rainRate" type="ntcip:EssPrecipRate" minOccurs="0"/>

element WeatherInformation/precipSituation

diagram
type	ntcip:EssPrecipSituation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="precipSituation" type="ntcip:EssPrecipSituation" minOccurs="0"/>

element WeatherInformation/precipYesNo

diagram
type	ntcip:EssPrecipYesNo
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="precipYesNo" type="ntcip:EssPrecipYesNo" minOccurs="0"/>

element WeatherInformation/waterDepth

diagram
type	ntcip:EssWaterDepth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="waterDepth" type="ntcip:EssWaterDepth" minOccurs="0"/>

element WeatherInformation/surfaceWaterDepth

diagram
type	ntcip:EssSurfaceWaterDepth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="surfaceWaterDepth" type="ntcip:EssSurfaceWaterDepth" minOccurs="0"/>

element WeatherInformation/precipStart

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="precipStart" type="DateTimePair" minOccurs="0"/>

element WeatherInformation/precipEnd

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="precipEnd" type="DateTimePair" minOccurs="0"/>

element WeatherInformation/smogAlert

diagram
type	Pollution-SmogAlert
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="smogAlert" type="Pollution-SmogAlert" minOccurs="0"/>

element WeatherInformation/airQualityIndex

diagram
type	Pollution-AirQualityIndex
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  500
source	<xs:element name="airQualityIndex" type="Pollution-AirQualityIndex" minOccurs="0"/>

element WeatherInformation/carbonMonoxide

diagram
type	ntcip:EssCO
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="carbonMonoxide" type="ntcip:EssCO" minOccurs="0"/>

element WeatherInformation/carbonDioxide

diagram
type	ntcip:EssCO2
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="carbonDioxide" type="ntcip:EssCO2" minOccurs="0"/>

element WeatherInformation/hydroCarbon

diagram
type	Pollution-HydroCarbon
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="hydroCarbon" type="Pollution-HydroCarbon" minOccurs="0"/>

element WeatherInformation/sulfurDioxide

diagram
type	ntcip:EssSO2
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="sulfurDioxide" type="ntcip:EssSO2" minOccurs="0"/>

element WeatherInformation/nitricOxide

diagram
type	ntcip:EssNO
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="nitricOxide" type="ntcip:EssNO" minOccurs="0"/>

element WeatherInformation/nitrousDioxide

diagram
type	ntcip:EssNO2
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="nitrousDioxide" type="ntcip:EssNO2" minOccurs="0"/>

element WeatherInformation/particulate

diagram
type	ntcip:EssPM10
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="particulate" type="ntcip:EssPM10" minOccurs="0"/>

element WeatherInformation/ozone

diagram
type	ntcip:EssO3
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ozone" type="ntcip:EssO3" minOccurs="0"/>

element WeatherInformation/uvLevel

diagram
type	UVLevel
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="uvLevel" type="UVLevel" minOccurs="0"/>

element WeatherInformation/airQuality

diagram
type	itis:VisibilityAndAirQuality
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="airQuality" type="itis:VisibilityAndAirQuality" minOccurs="0"/>

element WeatherInformation/airQualifier

diagram
type	itis:Qualifiers
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="airQualifier" type="itis:Qualifiers" minOccurs="0"/>

element WeatherInformation/levelofservice

diagram
type	tmdd:Link-level-of-service
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="levelofservice" type="tmdd:Link-level-of-service" minOccurs="0"/>

element WeatherInformation/status

diagram
type	itis:Closures
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="status" type="itis:Closures" minOccurs="0"/>

element WeatherInformation/drivingRestrictions

diagram
type	itis:WinterDrivingRestrictions
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="drivingRestrictions" type="itis:WinterDrivingRestrictions" minOccurs="0"/>

element WeatherInformation/drivingIndex

diagram
type	itis:WinterDrivingIndex
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="drivingIndex" type="itis:WinterDrivingIndex" minOccurs="0"/>

element WeatherInformation/mediantype

diagram
type	tmdd:Link-median-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="mediantype" type="tmdd:Link-median-type" minOccurs="0"/>

element WeatherInformation/mobileFriction

diagram
type	ntcip:EssMobileFriction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  101
source	<xs:element name="mobileFriction" type="ntcip:EssMobileFriction" minOccurs="0"/>

element WeatherInformation/pavementConditions

diagram
type	itis:PavementConditions
properties	isRef  0 minOcc  0 maxOcc  3 content  simple
source	<xs:element name="pavementConditions" type="itis:PavementConditions" minOccurs="0" maxOccurs="3"/>

element WeatherInformation/pavementTemperature

diagram
type	ntcip:EssPavementTemperature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="pavementTemperature" type="ntcip:EssPavementTemperature" minOccurs="0"/>

element WeatherInformation/surfaceTemperature

diagram
type	ntcip:EssSurfaceTemperature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="surfaceTemperature" type="ntcip:EssSurfaceTemperature" minOccurs="0"/>

element WeatherInformation/surfaceSalinity

diagram
type	ntcip:EssSurfaceSalinity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="surfaceSalinity" type="ntcip:EssSurfaceSalinity" minOccurs="0"/>

element WeatherInformation/pavementtype

diagram
type	tmdd:Link-pavement-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pavementtype" type="tmdd:Link-pavement-type" minOccurs="0"/>

element WeatherInformation/treatmentForm

diagram
type	ntcip:EssPaveTreatProductForm
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="treatmentForm" type="ntcip:EssPaveTreatProductForm" minOccurs="0"/>

element WeatherInformation/treatmentType

diagram
type	ntcip:EssPaveTreatProductType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="treatmentType" type="ntcip:EssPaveTreatProductType" minOccurs="0"/>

element WeatherInformation/treatmentAmount

diagram
type	ntcip:EssPaveTreatmentAmount
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="treatmentAmount" type="ntcip:EssPaveTreatmentAmount" minOccurs="0"/>

element WeatherInformation/treatmentWidth

diagram
type	ntcip:EssPaveTreatmentWidth
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="treatmentWidth" type="ntcip:EssPaveTreatmentWidth" minOccurs="0"/>

element WeatherInformation/pressure

diagram
type	ntcip:EssAtmosphericPressure
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pressure" type="ntcip:EssAtmosphericPressure" minOccurs="0"/>

element WeatherInformation/solarRate

diagram
type	ntcip:EssSolarRadiation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="solarRate" type="ntcip:EssSolarRadiation" minOccurs="0"/>

element WeatherInformation/dewPoint

diagram
type	ntcip:EssDewpointTemp
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1000 maxInclusive  1001
source	<xs:element name="dewPoint" type="ntcip:EssDewpointTemp" minOccurs="0"/>

element WeatherInformation/other

diagram
type	ntcip:ESS-other
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="other" type="ntcip:ESS-other" minOccurs="0"/>

element WeatherInformation/furtherText

diagram
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  1000
source	<xs:element name="furtherText" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="1000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element WeatherInformation/furtherData

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element WeatherInformation/tail

diagram
type	Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>

element WeatherInformation/localWeatherInformation

diagram
type	local:WeatherInformation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localWeatherInformation" type="local:WeatherInformation" minOccurs="0"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
