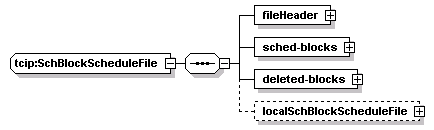

complexType tcip:SchBlockScheduleFile
diagram
namespace http://www.TCIP-Adopted-03-00-01
children fileHeader sched-blocks deleted-blocks localSchBlockScheduleFile
used by
element tcip:schBlockScheduleFile
source <xs:complexType name="SchBlockScheduleFile">
  <xs:sequence>
    <xs:element name="fileHeader" type="CPTLoadFileHeader"/>
    <xs:element name="sched-blocks">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-blocks">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="deleted-block" type="SCHBlockIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSchBlockScheduleFile" type="local:SchBlockScheduleFile" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

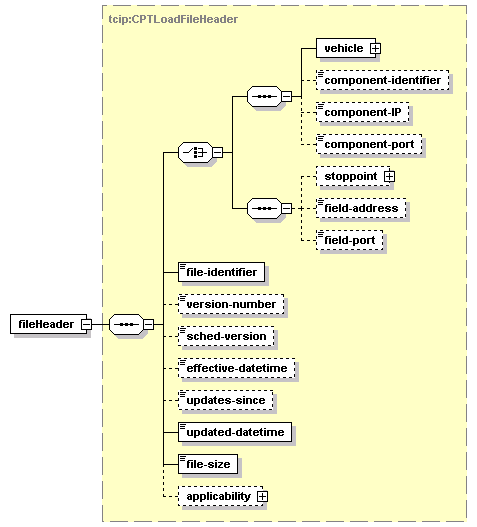

element tcip:SchBlockScheduleFile/fileHeader
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:SchBlockScheduleFile/sched-blocks
diagram
properties
isRef 0
content complex
children sched-block
source <xs:element name="sched-blocks">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

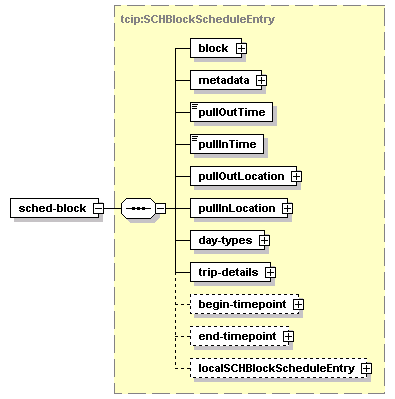

element tcip:SchBlockScheduleFile/sched-blocks/sched-block
diagram
type tcip:SCHBlockScheduleEntry
properties
isRef 0
content complex
children block metadata pullOutTime pullInTime pullOutLocation pullInLocation day-types trip-details begin-timepoint end-timepoint localSCHBlockScheduleEntry
source <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>

element tcip:SchBlockScheduleFile/deleted-blocks
diagram
properties
isRef 0
content complex
children deleted-block
source <xs:element name="deleted-blocks">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="deleted-block" type="SCHBlockIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

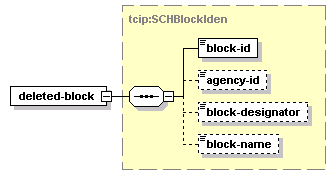

element tcip:SchBlockScheduleFile/deleted-blocks/deleted-block
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="deleted-block" type="SCHBlockIden"/>

element tcip:SchBlockScheduleFile/localSchBlockScheduleFile
diagram
type SchBlockScheduleFile
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSchBlockScheduleFile" type="local:SchBlockScheduleFile" minOccurs="0"/>
