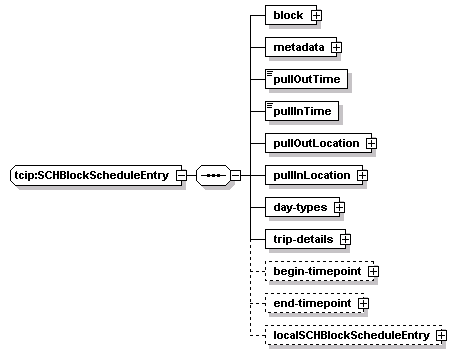

complexType tcip:SCHBlockScheduleEntry
diagram
namespace http://www.TCIP-Adopted-03-00-01
children block metadata pullOutTime pullInTime pullOutLocation pullInLocation day-types trip-details begin-timepoint end-timepoint localSCHBlockScheduleEntry
used by
elements tcip:SchBlockScheduleFile/sched-blocks/sched-block tcip:SchBlockScheduleList/sched-blocks/sched-block tcip:SchPushBlockSchedule/sched-blocks/sched-block
source <xs:complexType name="SCHBlockScheduleEntry">
  <xs:sequence>
    <xs:element name="block" type="SCHBlockIden"/>
    <xs:element name="metadata" type="CPTRowMetaData"/>
    <xs:element name="pullOutTime" type="SCH-Time"/>
    <xs:element name="pullInTime" type="SCH-Time"/>
    <xs:element name="pullOutLocation" type="lrms:GeoLocation"/>
    <xs:element name="pullInLocation" type="lrms:GeoLocation"/>
    <xs:element name="day-types">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="day-type" type="SCH-DayType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="trip-details">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="trip-detail" type="SCHTripInfo"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="begin-timepoint" type="SCHTimepointIden" minOccurs="0"/>
    <xs:element name="end-timepoint" type="SCHTimepointIden" minOccurs="0"/>
    <xs:element name="localSCHBlockScheduleEntry" type="local:SCHBlockScheduleEntry" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:SCHBlockScheduleEntry/block
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="block" type="SCHBlockIden"/>

element tcip:SCHBlockScheduleEntry/metadata
diagram
type tcip:CPTRowMetaData
properties
isRef 0
content complex
children created effective expiration activation deactivation updated
source <xs:element name="metadata" type="CPTRowMetaData"/>

element tcip:SCHBlockScheduleEntry/pullOutTime
diagram
type tcip:SCH-Time
properties
isRef 0
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="pullOutTime" type="SCH-Time"/>

element tcip:SCHBlockScheduleEntry/pullInTime
diagram
type tcip:SCH-Time
properties
isRef 0
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="pullInTime" type="SCH-Time"/>

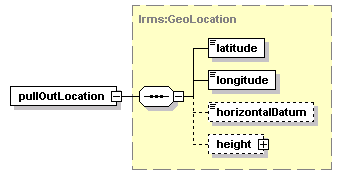

element tcip:SCHBlockScheduleEntry/pullOutLocation
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
source <xs:element name="pullOutLocation" type="lrms:GeoLocation"/>

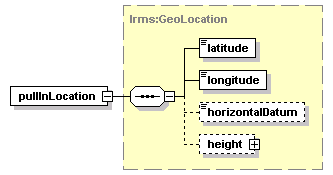

element tcip:SCHBlockScheduleEntry/pullInLocation
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
source <xs:element name="pullInLocation" type="lrms:GeoLocation"/>

element tcip:SCHBlockScheduleEntry/day-types
diagram
properties
isRef 0
content complex
children day-type
source <xs:element name="day-types">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="day-type" type="SCH-DayType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHBlockScheduleEntry/day-types/day-type
diagram
type tcip:SCH-DayType
properties
isRef 0
content simple
source <xs:element name="day-type" type="SCH-DayType"/>

element tcip:SCHBlockScheduleEntry/trip-details
diagram
properties
isRef 0
content complex
children trip-detail
source <xs:element name="trip-details">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="trip-detail" type="SCHTripInfo"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

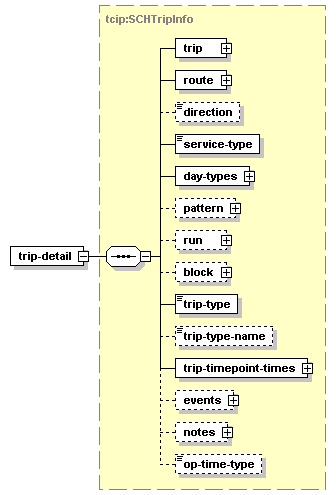

element tcip:SCHBlockScheduleEntry/trip-details/trip-detail
diagram
type tcip:SCHTripInfo
properties
isRef 0
content complex
children trip route direction service-type day-types pattern run block trip-type trip-type-name trip-timepoint-times events notes op-time-type
source <xs:element name="trip-detail" type="SCHTripInfo"/>

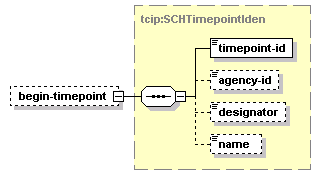

element tcip:SCHBlockScheduleEntry/begin-timepoint
diagram
type tcip:SCHTimepointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children timepoint-id agency-id designator name

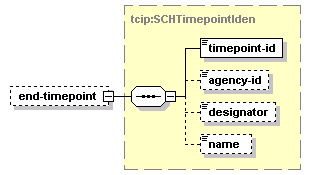

source <xs:element name="begin-timepoint" type="SCHTimepointIden" minOccurs="0"/>

element tcip:SCHBlockScheduleEntry/end-timepoint
diagram
type tcip:SCHTimepointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children timepoint-id agency-id designator name
source <xs:element name="end-timepoint" type="SCHTimepointIden" minOccurs="0"/>

element tcip:SCHBlockScheduleEntry/localSCHBlockScheduleEntry
diagram
type SCHBlockScheduleEntry
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSCHBlockScheduleEntry" type="local:SCHBlockScheduleEntry" minOccurs="0"/>
