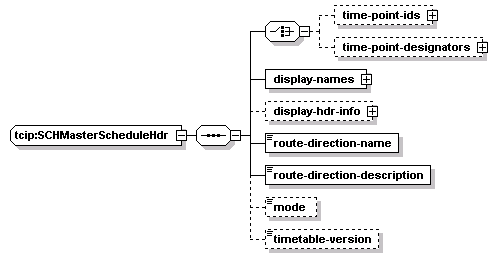

complexType tcip:SCHMasterScheduleHdr

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	time-point-ids time-point-designators display-names display-hdr-info route-direction-name route-direction-description mode timetable-version
used by	elements  tcip:PIPublishedScheduleTable/schedHdr tcip:SCHRoute/schedHdr1 tcip:SCHRoute/schedHdr2
source	<xs:complexType name="SCHMasterScheduleHdr">   <xs:sequence>     <xs:choice>       <xs:element name="time-point-ids" minOccurs="0">         <xs:complexType>           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:element name="time-point-id" type="SCH-TimepointID"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="time-point-designators" minOccurs="0">         <xs:complexType>           <xs:sequence minOccurs="0" maxOccurs="unbounded">             <xs:element name="time-point-designator" type="SCH-TimepointDesignator"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:choice>     <xs:element name="display-names">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="display-name" type="SCH-TimepointName"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="display-hdr-info" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="display-hdr-info-item">             <xs:simpleType>               <xs:restriction base="xs:string">                 <xs:minLength value="0"/>                 <xs:maxLength value="255"/>               </xs:restriction>             </xs:simpleType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="route-direction-name" type="SCH-RouteDirectionName"/>     <xs:element name="route-direction-description" type="CPT-Footnote"/>     <xs:element name="mode" type="CPT-Mode" minOccurs="0"/>     <xs:element name="timetable-version" type="SCH-TimetableVersionID" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHMasterScheduleHdr/time-point-ids

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	time-point-id
source	<xs:element name="time-point-ids" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="time-point-id" type="SCH-TimepointID"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHMasterScheduleHdr/time-point-ids/time-point-id

diagram
type	tcip:SCH-TimepointID
properties	isRef  0 content  simple
source	<xs:element name="time-point-id" type="SCH-TimepointID"/>

element tcip:SCHMasterScheduleHdr/time-point-designators

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	time-point-designator
source	<xs:element name="time-point-designators" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="time-point-designator" type="SCH-TimepointDesignator"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHMasterScheduleHdr/time-point-designators/time-point-designator

diagram
type	tcip:SCH-TimepointDesignator
properties	isRef  0 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="time-point-designator" type="SCH-TimepointDesignator"/>

element tcip:SCHMasterScheduleHdr/display-names

diagram
properties	isRef  0 content  complex
children	display-name
source	<xs:element name="display-names">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="display-name" type="SCH-TimepointName"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHMasterScheduleHdr/display-names/display-name

diagram
type	tcip:SCH-TimepointName
properties	isRef  0 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="display-name" type="SCH-TimepointName"/>

element tcip:SCHMasterScheduleHdr/display-hdr-info

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	display-hdr-info-item
source	<xs:element name="display-hdr-info" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="display-hdr-info-item">         <xs:simpleType>           <xs:restriction base="xs:string">             <xs:minLength value="0"/>             <xs:maxLength value="255"/>           </xs:restriction>         </xs:simpleType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:SCHMasterScheduleHdr/display-hdr-info/display-hdr-info-item

diagram
type	restriction of xs:string
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="display-hdr-info-item">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="0"/>       <xs:maxLength value="255"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element tcip:SCHMasterScheduleHdr/route-direction-name

diagram
type	tcip:SCH-RouteDirectionName
properties	isRef  0 content  simple
source	<xs:element name="route-direction-name" type="SCH-RouteDirectionName"/>

element tcip:SCHMasterScheduleHdr/route-direction-description

diagram
type	tcip:CPT-Footnote
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="route-direction-description" type="CPT-Footnote"/>

element tcip:SCHMasterScheduleHdr/mode

diagram
type	tcip:CPT-Mode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  2
source	<xs:element name="mode" type="CPT-Mode" minOccurs="0"/>

element tcip:SCHMasterScheduleHdr/timetable-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timetable-version" type="SCH-TimetableVersionID" minOccurs="0"/>
