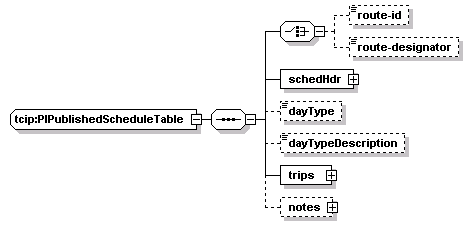

complexType tcip:PIPublishedScheduleTable

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	route-id route-designator schedHdr dayType dayTypeDescription trips notes
used by	element  tcip:PIPublishedSchedule/timetables/timetable
source	<xs:complexType name="PIPublishedScheduleTable">   <xs:sequence>     <xs:choice>       <xs:element name="route-id" type="SCH-RouteID" minOccurs="0"/>       <xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>     </xs:choice>     <xs:element name="schedHdr" type="SCHMasterScheduleHdr"/>     <xs:element name="dayType" type="SCH-DayType" minOccurs="0"/>     <xs:element name="dayTypeDescription" type="SCH-DayTypeDescription" minOccurs="0"/>     <xs:element name="trips">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="trip" type="SCHTrip"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="notes" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="unbounded">           <xs:element name="note" type="SCHNote"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:PIPublishedScheduleTable/route-id

diagram
type	tcip:SCH-RouteID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="route-id" type="SCH-RouteID" minOccurs="0"/>

element tcip:PIPublishedScheduleTable/route-designator

diagram
type	tcip:SCH-RouteDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="route-designator" type="SCH-RouteDesignator" minOccurs="0"/>

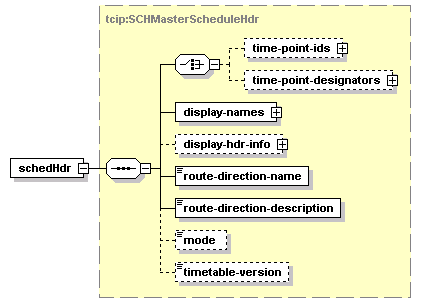

element tcip:PIPublishedScheduleTable/schedHdr

diagram
type	tcip:SCHMasterScheduleHdr
properties	isRef  0 content  complex
children	time-point-ids time-point-designators display-names display-hdr-info route-direction-name route-direction-description mode timetable-version
source	<xs:element name="schedHdr" type="SCHMasterScheduleHdr"/>

element tcip:PIPublishedScheduleTable/dayType

diagram
type	tcip:SCH-DayType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="dayType" type="SCH-DayType" minOccurs="0"/>

element tcip:PIPublishedScheduleTable/dayTypeDescription

diagram
type	tcip:SCH-DayTypeDescription
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="dayTypeDescription" type="SCH-DayTypeDescription" minOccurs="0"/>

element tcip:PIPublishedScheduleTable/trips

diagram
properties	isRef  0 content  complex
children	trip
source	<xs:element name="trips">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="trip" type="SCHTrip"/>     </xs:sequence>   </xs:complexType> </xs:element>

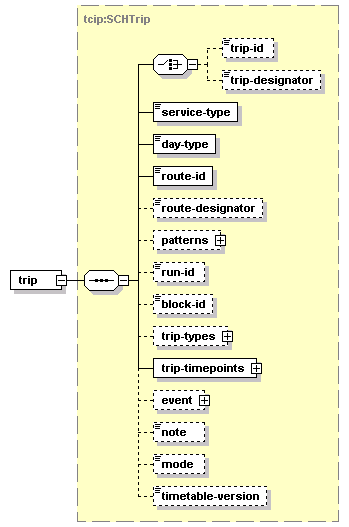

element tcip:PIPublishedScheduleTable/trips/trip

diagram
type	tcip:SCHTrip
properties	isRef  0 content  complex
children	trip-id trip-designator service-type day-type route-id route-designator patterns run-id block-id trip-types trip-timepoints event note mode timetable-version
source	<xs:element name="trip" type="SCHTrip"/>

element tcip:PIPublishedScheduleTable/notes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	note
source	<xs:element name="notes" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="unbounded">       <xs:element name="note" type="SCHNote"/>     </xs:sequence>   </xs:complexType> </xs:element>

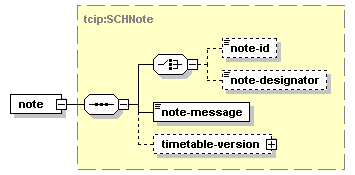

element tcip:PIPublishedScheduleTable/notes/note

diagram
type	tcip:SCHNote
properties	isRef  0 content  complex
children	note-id note-designator note-message timetable-version
source	<xs:element name="note" type="SCHNote"/>
