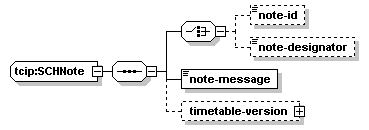

complexType tcip:SCHNote

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	note-id note-designator note-message timetable-version
used by	elements  tcip:PIPublishedSchedule/notes/note tcip:PIPublishedScheduleTable/notes/note
source	<xs:complexType name="SCHNote">   <xs:sequence>     <xs:choice>       <xs:element name="note-id" type="SCH-NoteID" minOccurs="0"/>       <xs:element name="note-designator" type="SCH-NoteDesignator" minOccurs="0"/>     </xs:choice>     <xs:element name="note-message" type="SCH-NoteMsg"/>     <xs:element name="timetable-version" type="SCHTimetableVersion" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHNote/note-id

diagram
type	tcip:SCH-NoteID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="note-id" type="SCH-NoteID" minOccurs="0"/>

element tcip:SCHNote/note-designator

diagram
type	tcip:SCH-NoteDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="note-designator" type="SCH-NoteDesignator" minOccurs="0"/>

element tcip:SCHNote/note-message

diagram
type	tcip:SCH-NoteMsg
properties	isRef  0 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="note-message" type="SCH-NoteMsg"/>

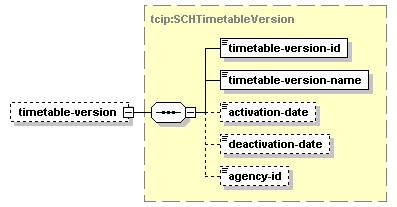

element tcip:SCHNote/timetable-version

diagram
type	tcip:SCHTimetableVersion
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timetable-version-id timetable-version-name activation-date deactivation-date agency-id
source	<xs:element name="timetable-version" type="SCHTimetableVersion" minOccurs="0"/>
