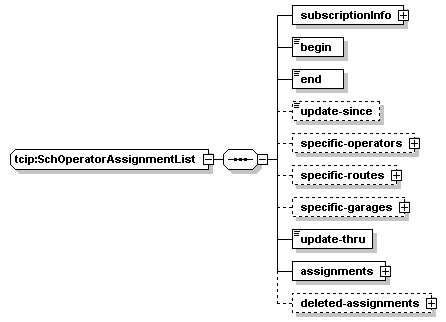

complexType tcip:SchOperatorAssignmentList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo begin end update-since specific-operators specific-routes specific-garages update-thru assignments deleted-assignments
used by
element tcip:schOperatorAssignmentList
source <xs:complexType name="SchOperatorAssignmentList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="begin" type="CPT-DateTime"/>
    <xs:element name="end" type="CPT-DateTime"/>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="specific-operators" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="specific-operator" type="CPTOperatorIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="specific-routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="specific-route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="specific-garages" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="specific-garage" type="CPTTransitFacilityIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="update-thru" type="CPT-DateTime"/>
    <xs:element name="assignments">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="assignment" type="SCHOperatorAssignment"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-assignments" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="deleted-assignment" type="SCHRunIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:SchOperatorAssignmentList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SchOperatorAssignmentList/begin
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin" type="CPT-DateTime"/>

element tcip:SchOperatorAssignmentList/end
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end" type="CPT-DateTime"/>

element tcip:SchOperatorAssignmentList/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchOperatorAssignmentList/specific-operators
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-operator
source <xs:element name="specific-operators" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="specific-operator" type="CPTOperatorIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

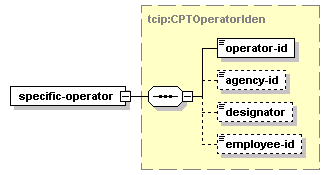

element tcip:SchOperatorAssignmentList/specific-operators/specific-operator
diagram
type tcip:CPTOperatorIden
properties
isRef 0
content complex
children operator-id agency-id designator employee-id
source <xs:element name="specific-operator" type="CPTOperatorIden"/>

element tcip:SchOperatorAssignmentList/specific-routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-route
source <xs:element name="specific-routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="specific-route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

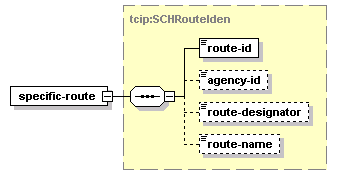

element tcip:SchOperatorAssignmentList/specific-routes/specific-route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="specific-route" type="SCHRouteIden"/>

element tcip:SchOperatorAssignmentList/specific-garages
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-garage
source <xs:element name="specific-garages" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="specific-garage" type="CPTTransitFacilityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

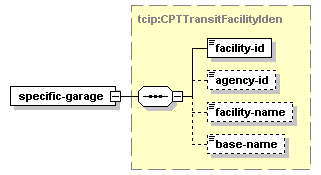

element tcip:SchOperatorAssignmentList/specific-garages/specific-garage
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="specific-garage" type="CPTTransitFacilityIden"/>

element tcip:SchOperatorAssignmentList/update-thru
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="update-thru" type="CPT-DateTime"/>

element tcip:SchOperatorAssignmentList/assignments
diagram
properties
isRef 0
content complex
children assignment
source <xs:element name="assignments">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="assignment" type="SCHOperatorAssignment"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

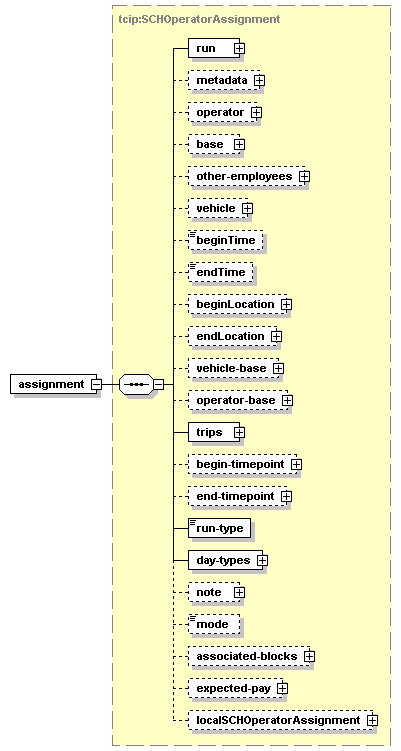

element tcip:SchOperatorAssignmentList/assignments/assignment
diagram
type tcip:SCHOperatorAssignment
properties
isRef 0
content complex
children run metadata operator base other-employees vehicle beginTime endTime beginLocation endLocation vehicle-base operator-base trips begin-timepoint end-timepoint run-type day-types note mode associated-blocks expected-pay localSCHOperatorAssignment
source <xs:element name="assignment" type="SCHOperatorAssignment"/>

element tcip:SchOperatorAssignmentList/deleted-assignments
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-assignment
source <xs:element name="deleted-assignments" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="deleted-assignment" type="SCHRunIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

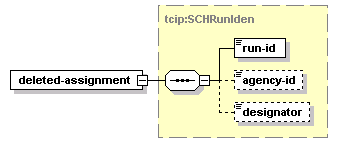

element tcip:SchOperatorAssignmentList/deleted-assignments/deleted-assignment
diagram
type tcip:SCHRunIden
properties
isRef 0
content complex
children run-id agency-id designator
source <xs:element name="deleted-assignment" type="SCHRunIden"/>
