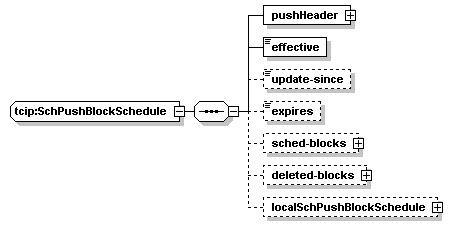

complexType tcip:SchPushBlockSchedule
diagram
namespace http://www.TCIP-Adopted-03-00-01
children pushHeader effective update-since expires sched-blocks deleted-blocks localSchPushBlockSchedule
used by
element tcip:schPushBlockSchedule
source <xs:complexType name="SchPushBlockSchedule">
  <xs:sequence>
    <xs:element name="pushHeader" type="CPTPushHeader"/>
    <xs:element name="effective" type="CPT-DateTime"/>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="expires" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="sched-blocks" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-blocks" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="deleted-block" type="SCHBlockIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSchPushBlockSchedule" type="local:SchPushBlockSchedule" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

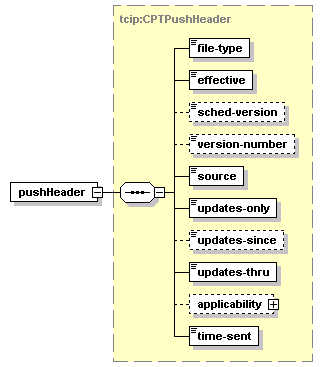

element tcip:SchPushBlockSchedule/pushHeader
diagram
type tcip:CPTPushHeader
properties
isRef 0
content complex
children file-type effective sched-version version-number source updates-only updates-since updates-thru applicability time-sent
source <xs:element name="pushHeader" type="CPTPushHeader"/>

element tcip:SchPushBlockSchedule/effective
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="effective" type="CPT-DateTime"/>

element tcip:SchPushBlockSchedule/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchPushBlockSchedule/expires
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="expires" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchPushBlockSchedule/sched-blocks
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children sched-block
source <xs:element name="sched-blocks" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

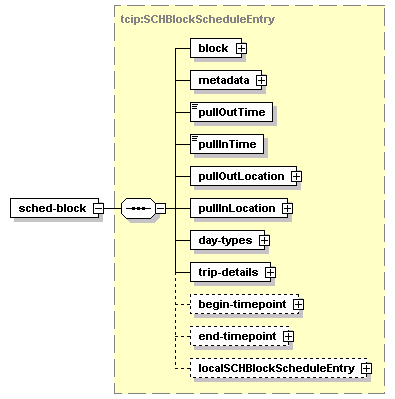

element tcip:SchPushBlockSchedule/sched-blocks/sched-block
diagram
type tcip:SCHBlockScheduleEntry
properties
isRef 0
content complex
children block metadata pullOutTime pullInTime pullOutLocation pullInLocation day-types trip-details begin-timepoint end-timepoint localSCHBlockScheduleEntry
source <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>

element tcip:SchPushBlockSchedule/deleted-blocks
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-block
source <xs:element name="deleted-blocks" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="deleted-block" type="SCHBlockIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

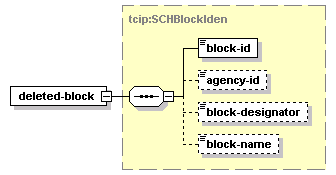

element tcip:SchPushBlockSchedule/deleted-blocks/deleted-block
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="deleted-block" type="SCHBlockIden"/>

element tcip:SchPushBlockSchedule/localSchPushBlockSchedule
diagram
type SchPushBlockSchedule
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSchPushBlockSchedule" type="local:SchPushBlockSchedule" minOccurs="0"/>
