complexType tcip:SchReportValidationErrorsAck

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	originator version-used
used by	element  tcip:schReportValidationErrorsAck
source	<xs:complexType name="SchReportValidationErrorsAck">   <xs:sequence>     <xs:element name="originator" type="CPT-ApplicationID"/>     <!-- refers to the application detecting the failure -->     <xs:element name="version-used" type="SCHRouteVersion"/>   </xs:sequence> </xs:complexType>

element tcip:SchReportValidationErrorsAck/originator

diagram
type	tcip:CPT-ApplicationID
properties	isRef  0 content  simple
source	<xs:element name="originator" type="CPT-ApplicationID"/>

element tcip:SchReportValidationErrorsAck/version-used

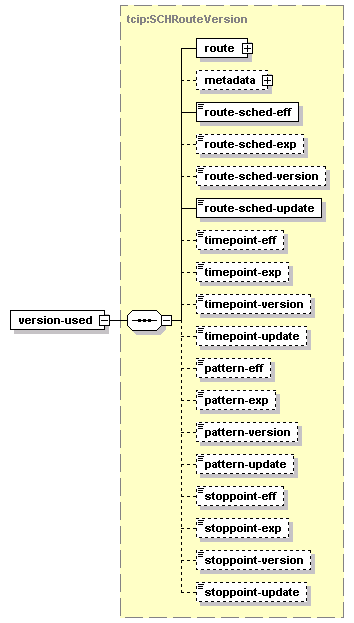

diagram
type	tcip:SCHRouteVersion
properties	isRef  0 content  complex
children	route metadata route-sched-eff route-sched-exp route-sched-version route-sched-update timepoint-eff timepoint-exp timepoint-version timepoint-update pattern-eff pattern-exp pattern-version pattern-update stoppoint-eff stoppoint-exp stoppoint-version stoppoint-update
source	<xs:element name="version-used" type="SCHRouteVersion"/>
