complexType tcip:SCHRouteVersion

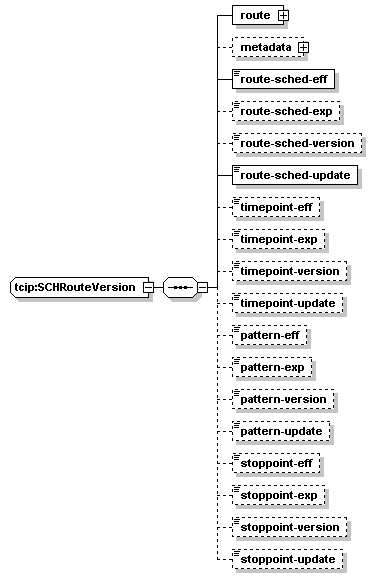

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	route metadata route-sched-eff route-sched-exp route-sched-version route-sched-update timepoint-eff timepoint-exp timepoint-version timepoint-update pattern-eff pattern-exp pattern-version pattern-update stoppoint-eff stoppoint-exp stoppoint-version stoppoint-update
used by	elements  tcip:SchMasterScheduleVersion/route-versions/route-version tcip:SchReportValidationErrors/version-used tcip:SchReportValidationErrorsAck/version-used tcip:SchPushMasterScheduleVersion/versionInfo/versionInfo-item
source	<xs:complexType name="SCHRouteVersion">   <xs:sequence>     <xs:element name="route" type="SCHRouteIden"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="route-sched-eff" type="CPT-DateTime"/>     <xs:element name="route-sched-exp" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="route-sched-version" type="SCH-TimetableVersionID" minOccurs="0"/>     <xs:element name="route-sched-update" type="CPT-DateTime"/>     <xs:element name="timepoint-eff" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="timepoint-exp" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="timepoint-version" type="SCH-TimetableVersionID" minOccurs="0"/>     <xs:element name="timepoint-update" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="pattern-eff" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="pattern-exp" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="pattern-version" type="SCH-TimetableVersionID" minOccurs="0"/>     <xs:element name="pattern-update" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="stoppoint-eff" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="stoppoint-exp" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="stoppoint-version" type="SCH-TimetableVersionID" minOccurs="0"/>     <xs:element name="stoppoint-update" type="CPT-DateTime" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHRouteVersion/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden"/>

element tcip:SCHRouteVersion/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:SCHRouteVersion/route-sched-eff

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="route-sched-eff" type="CPT-DateTime"/>

element tcip:SCHRouteVersion/route-sched-exp

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="route-sched-exp" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/route-sched-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="route-sched-version" type="SCH-TimetableVersionID" minOccurs="0"/>

element tcip:SCHRouteVersion/route-sched-update

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="route-sched-update" type="CPT-DateTime"/>

element tcip:SCHRouteVersion/timepoint-eff

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timepoint-eff" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/timepoint-exp

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timepoint-exp" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/timepoint-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timepoint-version" type="SCH-TimetableVersionID" minOccurs="0"/>

element tcip:SCHRouteVersion/timepoint-update

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timepoint-update" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/pattern-eff

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pattern-eff" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/pattern-exp

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pattern-exp" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/pattern-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pattern-version" type="SCH-TimetableVersionID" minOccurs="0"/>

element tcip:SCHRouteVersion/pattern-update

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="pattern-update" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/stoppoint-eff

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="stoppoint-eff" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/stoppoint-exp

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="stoppoint-exp" type="CPT-DateTime" minOccurs="0"/>

element tcip:SCHRouteVersion/stoppoint-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="stoppoint-version" type="SCH-TimetableVersionID" minOccurs="0"/>

element tcip:SCHRouteVersion/stoppoint-update

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="stoppoint-update" type="CPT-DateTime" minOccurs="0"/>
