complexType tcip:SCHRoster

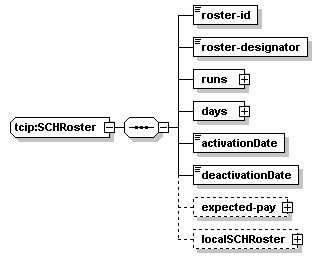

diagram
namespace http://www.TCIP-Adopted-03-00-01
children roster-id roster-designator runs days activationDate deactivationDate expected-pay localSCHRoster
used by
elements tcip:SchPushRoster/rosters/roster tcip:SchRosterList/rosters/roster
source <xs:complexType name="SCHRoster">
  <xs:sequence>
    <xs:element name="roster-id" type="SCH-RosterID"/>
    <xs:element name="roster-designator" type="SCH-RosterDesignator"/>
    <xs:element name="runs">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="run" type="SCHRunIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="days">
      <xs:complexType>
        <xs:sequence maxOccurs="7">
          <xs:element name="day" type="CPT-DayofWeek"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="activationDate" type="CPT-Date"/>
    <xs:element name="deactivationDate" type="CPT-Date"/>
    <xs:element name="expected-pay" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="expected-pay-item" type="SCHOperatorPay"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSCHRoster" type="local:SCHRoster" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:SCHRoster/roster-id
diagram
type tcip:SCH-RosterID
properties
isRef 0
content simple
source <xs:element name="roster-id" type="SCH-RosterID"/>

element tcip:SCHRoster/roster-designator
diagram
type tcip:SCH-RosterDesignator
properties
isRef 0
content simple
facets
minLength 1
maxLength 8
source <xs:element name="roster-designator" type="SCH-RosterDesignator"/>

element tcip:SCHRoster/runs
diagram
properties
isRef 0
content complex
children run
source <xs:element name="runs">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="run" type="SCHRunIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHRoster/runs/run
diagram
type tcip:SCHRunIden
properties
isRef 0
content complex
children run-id agency-id designator
source <xs:element name="run" type="SCHRunIden"/>

element tcip:SCHRoster/days
diagram
properties
isRef 0
content complex
children day
source <xs:element name="days">
  <xs:complexType>
    <xs:sequence maxOccurs="7">
      <xs:element name="day" type="CPT-DayofWeek"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SCHRoster/days/day
diagram
type tcip:CPT-DayofWeek
properties
isRef 0
content simple
source <xs:element name="day" type="CPT-DayofWeek"/>

element tcip:SCHRoster/activationDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="activationDate" type="CPT-Date"/>

element tcip:SCHRoster/deactivationDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="deactivationDate" type="CPT-Date"/>

element tcip:SCHRoster/expected-pay
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children expected-pay-item
source <xs:element name="expected-pay" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="expected-pay-item" type="SCHOperatorPay"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

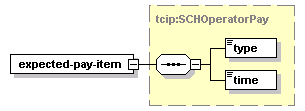

element tcip:SCHRoster/expected-pay/expected-pay-item
diagram
type tcip:SCHOperatorPay
properties
isRef 0
content complex
children type time
source <xs:element name="expected-pay-item" type="SCHOperatorPay"/>

element tcip:SCHRoster/localSCHRoster
diagram
type SCHRoster
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSCHRoster" type="local:SCHRoster" minOccurs="0"/>
