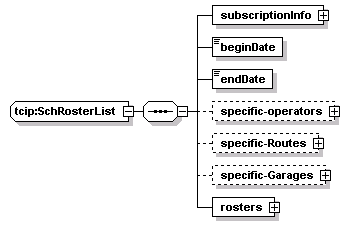

complexType tcip:SchRosterList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo beginDate endDate specific-operators specific-Routes specific-Garages rosters
used by
element tcip:schRosterList
source <xs:complexType name="SchRosterList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="beginDate" type="CPT-Date"/>
    <xs:element name="endDate" type="CPT-Date"/>
    <xs:element name="specific-operators" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="specific-operator" type="CPTOperatorIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="specific-Routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="specific-Route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="specific-Garages" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="specific-Garage" type="CPTTransitFacilityIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="rosters">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="roster" type="SCHRoster"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:SchRosterList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SchRosterList/beginDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="beginDate" type="CPT-Date"/>

element tcip:SchRosterList/endDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="endDate" type="CPT-Date"/>

element tcip:SchRosterList/specific-operators
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-operator
source <xs:element name="specific-operators" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="specific-operator" type="CPTOperatorIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

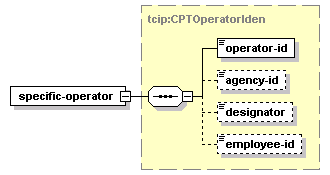

element tcip:SchRosterList/specific-operators/specific-operator
diagram
type tcip:CPTOperatorIden
properties
isRef 0
content complex
children operator-id agency-id designator employee-id
source <xs:element name="specific-operator" type="CPTOperatorIden"/>

element tcip:SchRosterList/specific-Routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-Route
source <xs:element name="specific-Routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="specific-Route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

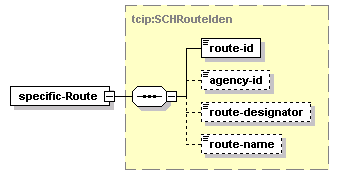

element tcip:SchRosterList/specific-Routes/specific-Route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="specific-Route" type="SCHRouteIden"/>

element tcip:SchRosterList/specific-Garages
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-Garage
source <xs:element name="specific-Garages" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="specific-Garage" type="CPTTransitFacilityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

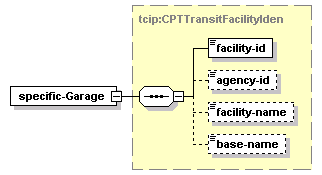

element tcip:SchRosterList/specific-Garages/specific-Garage
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="specific-Garage" type="CPTTransitFacilityIden"/>

element tcip:SchRosterList/rosters
diagram
properties
isRef 0
content complex
children roster
source <xs:element name="rosters">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="roster" type="SCHRoster"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

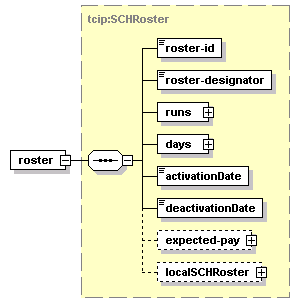

element tcip:SchRosterList/rosters/roster
diagram
type tcip:SCHRoster
properties
isRef 0
content complex
children roster-id roster-designator runs days activationDate deactivationDate expected-pay localSCHRoster
source <xs:element name="roster" type="SCHRoster"/>
