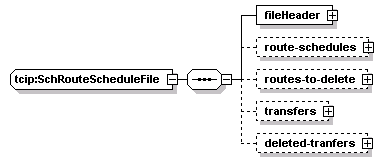

complexType tcip:SchRouteScheduleFile
diagram
namespace http://www.TCIP-Adopted-03-00-01
children fileHeader route-schedules routes-to-delete transfers deleted-tranfers
used by
element tcip:schRouteScheduleFile
source <xs:complexType name="SchRouteScheduleFile">
  <xs:sequence>
    <xs:element name="fileHeader" type="CPTLoadFileHeader"/>
    <xs:element name="route-schedules" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="route-schedule" type="SCHPTVRouteScheduleEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="routes-to-delete" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="routes-to-delete-item" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="transfers" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="transfer" type="SCHTransferInfo"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-tranfers" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="deleted-tranfer" type="SCH-TransferID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

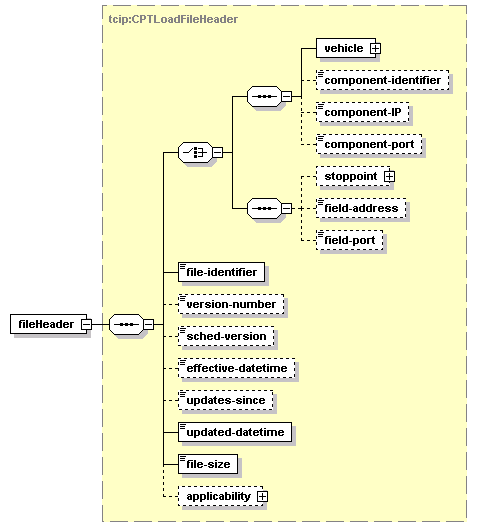

element tcip:SchRouteScheduleFile/fileHeader
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:SchRouteScheduleFile/route-schedules
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route-schedule
source <xs:element name="route-schedules" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route-schedule" type="SCHPTVRouteScheduleEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

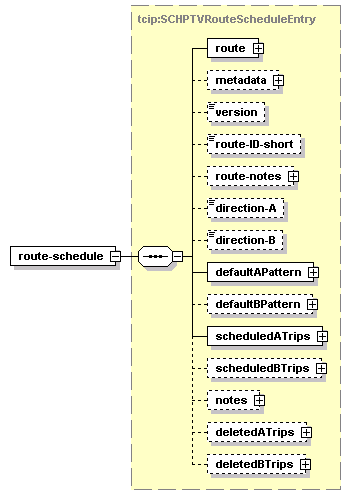

element tcip:SchRouteScheduleFile/route-schedules/route-schedule
diagram
type tcip:SCHPTVRouteScheduleEntry
properties
isRef 0
content complex
children route metadata version route-ID-short route-notes direction-A direction-B defaultAPattern defaultBPattern scheduledATrips scheduledBTrips notes deletedATrips deletedBTrips
source <xs:element name="route-schedule" type="SCHPTVRouteScheduleEntry"/>

element tcip:SchRouteScheduleFile/routes-to-delete
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children routes-to-delete-item
source <xs:element name="routes-to-delete" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="routes-to-delete-item" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

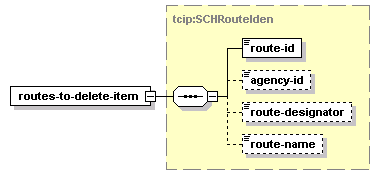

element tcip:SchRouteScheduleFile/routes-to-delete/routes-to-delete-item
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="routes-to-delete-item" type="SCHRouteIden"/>

element tcip:SchRouteScheduleFile/transfers
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children transfer
source <xs:element name="transfers" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="transfer" type="SCHTransferInfo"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

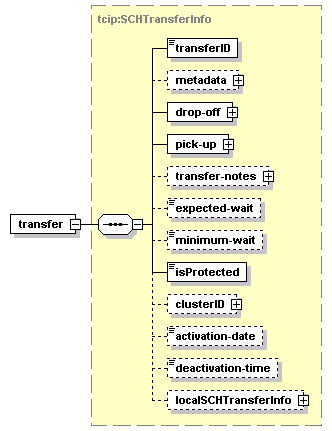

element tcip:SchRouteScheduleFile/transfers/transfer
diagram
type tcip:SCHTransferInfo
properties
isRef 0
content complex
children transferID metadata drop-off pick-up transfer-notes expected-wait minimum-wait isProtected clusterID activation-date deactivation-time localSCHTransferInfo
source <xs:element name="transfer" type="SCHTransferInfo"/>

element tcip:SchRouteScheduleFile/deleted-tranfers
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-tranfer
source <xs:element name="deleted-tranfers" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="deleted-tranfer" type="SCH-TransferID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SchRouteScheduleFile/deleted-tranfers/deleted-tranfer
diagram
type tcip:SCH-TransferID
properties
isRef 0
content simple
source <xs:element name="deleted-tranfer" type="SCH-TransferID"/>
