complexType PriceSchedule

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	start end entry
used by	elements  ParkingLotInformation/prices ParkingInstructions/pricing
source	<xs:complexType name="PriceSchedule">   <xs:sequence>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <xs:element name="end" type="DateTimePair" minOccurs="0"/>     <xs:element name="entry" type="PriceScheduleEntry" maxOccurs="100"/>   </xs:sequence> </xs:complexType>

element PriceSchedule/start

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element PriceSchedule/end

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

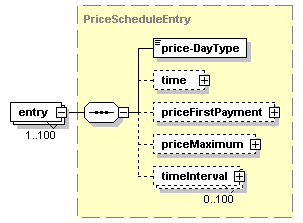

element PriceSchedule/entry

diagram
type	PriceScheduleEntry
properties	isRef  0 minOcc  1 maxOcc  100 content  complex
children	price-DayType time priceFirstPayment priceMaximum timeInterval
source	<xs:element name="entry" type="PriceScheduleEntry" maxOccurs="100"/>
