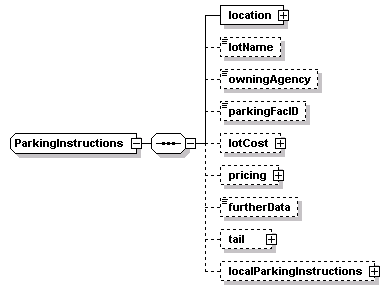

complexType ParkingInstructions

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	location lotName owningAgency parkingFacID lotCost pricing furtherData tail localParkingInstructions
used by	elements  tcip:PIParkingFacility/instructions Segment/actionRequired/parkingInstructions
source	<xs:complexType name="ParkingInstructions">   <xs:sequence>     <xs:element name="location" type="lrms:LocationReference"/>     <xs:element name="lotName" type="Freetext" minOccurs="0"/>     <xs:element name="owningAgency" type="tmdd:Organization-resource-identifier" minOccurs="0"/>     <xs:element name="parkingFacID" type="tcip:PI-ParkingFacID" minOccurs="0"/>     <xs:element name="lotCost" type="ComplexCost" minOccurs="0"/>     <xs:element name="pricing" type="PriceSchedule" minOccurs="0"/>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>     <xs:element name="localParkingInstructions" type="local:ParkingInstructions" minOccurs="0"/>   </xs:sequence> </xs:complexType>

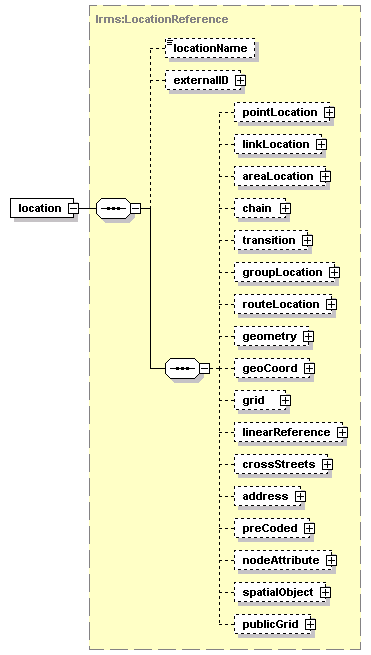

element ParkingInstructions/location

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="location" type="lrms:LocationReference"/>

element ParkingInstructions/lotName

diagram
type	Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="lotName" type="Freetext" minOccurs="0"/>

element ParkingInstructions/owningAgency

diagram
type	tmdd:Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="owningAgency" type="tmdd:Organization-resource-identifier" minOccurs="0"/>

element ParkingInstructions/parkingFacID

diagram
type	tcip:PI-ParkingFacID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="parkingFacID" type="tcip:PI-ParkingFacID" minOccurs="0"/>

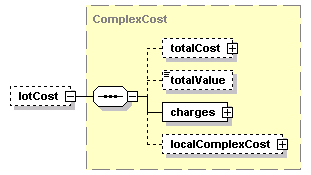

element ParkingInstructions/lotCost

diagram
type	ComplexCost
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	totalCost totalValue charges localComplexCost
source	<xs:element name="lotCost" type="ComplexCost" minOccurs="0"/>

element ParkingInstructions/pricing

diagram
type	PriceSchedule
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end entry
source	<xs:element name="pricing" type="PriceSchedule" minOccurs="0"/>

element ParkingInstructions/furtherData

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element ParkingInstructions/tail

diagram
type	Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>

element ParkingInstructions/localParkingInstructions

diagram
type	local:ParkingInstructions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localParkingInstructions" type="local:ParkingInstructions" minOccurs="0"/>
