complexType StatusBlock

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	level code text relatedData furtherInfo
used by	elements  AdvisoryInformation/statusBlock InformationResponse/statusBlock
source	<xs:complexType name="StatusBlock">   <xs:sequence>     <xs:element name="level" type="Error-NotificationLevel"/>     <xs:element name="code" type="Error-NotificationCode"/>     <xs:element name="text" type="itis:ITIScodesAndText" minOccurs="0"/>     <xs:element name="relatedData" minOccurs="0">       <xs:complexType>         <xs:choice>           <xs:element name="subscribe" type="RequestStatus"/>           <xs:element name="route" type="RouteStatus"/>           <xs:element name="server" type="ServerStatus"/>           <xs:element name="localStatusBlock" type="local:StatusBlock" minOccurs="0"/>         </xs:choice>       </xs:complexType>     </xs:element>     <xs:element name="furtherInfo" type="URL-Link" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element StatusBlock/level

diagram
type	Error-NotificationLevel
properties	isRef  0 content  simple
source	<xs:element name="level" type="Error-NotificationLevel"/>

element StatusBlock/code

diagram
type	Error-NotificationCode
properties	isRef  0 content  simple
source	<xs:element name="code" type="Error-NotificationCode"/>

element StatusBlock/text

diagram
type	itis:ITIScodesAndText
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	itis text
source	<xs:element name="text" type="itis:ITIScodesAndText" minOccurs="0"/>

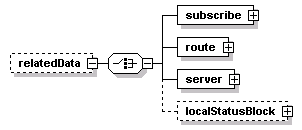

element StatusBlock/relatedData

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	subscribe route server localStatusBlock
source	<xs:element name="relatedData" minOccurs="0">   <xs:complexType>     <xs:choice>       <xs:element name="subscribe" type="RequestStatus"/>       <xs:element name="route" type="RouteStatus"/>       <xs:element name="server" type="ServerStatus"/>       <xs:element name="localStatusBlock" type="local:StatusBlock" minOccurs="0"/>     </xs:choice>   </xs:complexType> </xs:element>

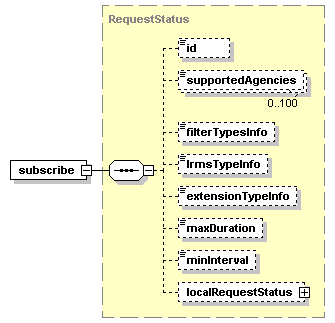

element StatusBlock/relatedData/subscribe

diagram
type	RequestStatus
properties	isRef  0 content  complex
children	id supportedAgencies filterTypesInfo lrmsTypeInfo extensionTypeInfo maxDuration minInterval localRequestStatus
source	<xs:element name="subscribe" type="RequestStatus"/>

element StatusBlock/relatedData/route

diagram
type	RouteStatus
properties	isRef  0 content  complex
children	phone text time references moreData localRouteStatus
source	<xs:element name="route" type="RouteStatus"/>

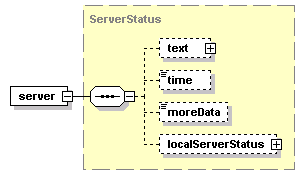

element StatusBlock/relatedData/server

diagram
type	ServerStatus
properties	isRef  0 content  complex
children	text time moreData localServerStatus
source	<xs:element name="server" type="ServerStatus"/>

element StatusBlock/relatedData/localStatusBlock

diagram
type	local:StatusBlock
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localStatusBlock" type="local:StatusBlock" minOccurs="0"/>

element StatusBlock/furtherInfo

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherInfo" type="URL-Link" minOccurs="0"/>
