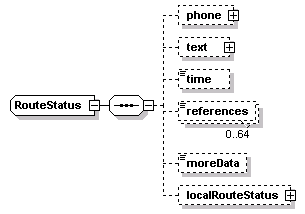

complexType RouteStatus

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	phone text time references moreData localRouteStatus
used by	element  StatusBlock/relatedData/route
source	<xs:complexType name="RouteStatus">   <xs:sequence>     <xs:element name="phone" type="PhoneInformation" minOccurs="0"/>     <!-- a number to use for further information -->     <xs:element name="text" type="itis:ITIScodesAndText" minOccurs="0"/>     <xs:element name="time" type="DateTimePair" minOccurs="0"/>     <xs:element name="references" type="im:ReferenceID" minOccurs="0" maxOccurs="64"/>     <!-- the Reference numbers for related messages -->     <xs:element name="moreData" type="URL-Link" minOccurs="0"/>     <xs:element name="localRouteStatus" type="local:RouteStatus" minOccurs="0"/>   </xs:sequence> </xs:complexType>

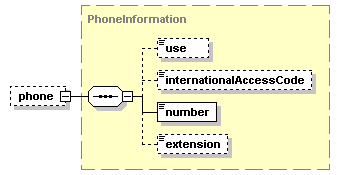

element RouteStatus/phone

diagram
type	PhoneInformation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	use internationalAccessCode number extension
source	<xs:element name="phone" type="PhoneInformation" minOccurs="0"/>

element RouteStatus/text

diagram
type	itis:ITIScodesAndText
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	itis text
source	<xs:element name="text" type="itis:ITIScodesAndText" minOccurs="0"/>

element RouteStatus/time

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="time" type="DateTimePair" minOccurs="0"/>

element RouteStatus/references

diagram
type	im:ReferenceID
properties	isRef  0 minOcc  0 maxOcc  64 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="references" type="im:ReferenceID" minOccurs="0" maxOccurs="64"/>

element RouteStatus/moreData

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="moreData" type="URL-Link" minOccurs="0"/>

element RouteStatus/localRouteStatus

diagram
type	local:RouteStatus
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localRouteStatus" type="local:RouteStatus" minOccurs="0"/>
