complexType TravelerDeviceSetting

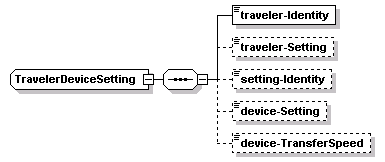

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	traveler-Identity traveler-Setting setting-Identity device-Setting device-TransferSpeed
used by	elements  ContactSetting/device travelerDeviceSetting
source	<xs:complexType name="TravelerDeviceSetting">   <xs:sequence>     <xs:element name="traveler-Identity" type="Traveler-Identity"/>     <xs:element name="traveler-Setting" type="Traveler-Setting" minOccurs="0"/>     <xs:element name="setting-Identity" type="Setting-Identity" minOccurs="0"/>     <xs:element name="device-Setting" type="Device-Setting" minOccurs="0"/>     <xs:element name="device-TransferSpeed" type="Device-TransferSpeed" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element TravelerDeviceSetting/traveler-Identity

diagram
type	Traveler-Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="traveler-Identity" type="Traveler-Identity"/>

element TravelerDeviceSetting/traveler-Setting

diagram
type	Traveler-Setting
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="traveler-Setting" type="Traveler-Setting" minOccurs="0"/>

element TravelerDeviceSetting/setting-Identity

diagram
type	Setting-Identity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="setting-Identity" type="Setting-Identity" minOccurs="0"/>

element TravelerDeviceSetting/device-Setting

diagram
type	Device-Setting
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="device-Setting" type="Device-Setting" minOccurs="0"/>

element TravelerDeviceSetting/device-TransferSpeed

diagram
type	Device-TransferSpeed
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  99999999
source	<xs:element name="device-TransferSpeed" type="Device-TransferSpeed" minOccurs="0"/>
