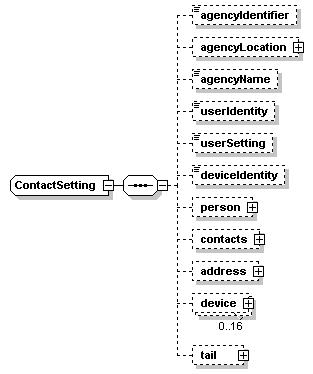

complexType ContactSetting

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	agencyIdentifier agencyLocation agencyName userIdentity userSetting deviceIdentity person contacts address device tail
used by	elements  MessageHeader/sender TravelerSettingsRequest/userData
source	<xs:complexType name="ContactSetting">   <xs:sequence>     <xs:element name="agencyIdentifier" type="tmdd:Organization-resource-identifier" minOccurs="0"/>     <xs:element name="agencyLocation" type="lrms:AreaLocation" minOccurs="0"/>     <xs:element name="agencyName" type="tmdd:Link-ownership" minOccurs="0"/>     <!-- TMDD.Contact-organization-name -->     <xs:element name="userIdentity" type="Traveler-Identity" minOccurs="0"/>     <xs:element name="userSetting" type="Traveler-Setting" minOccurs="0"/>     <xs:element name="deviceIdentity" type="Setting-Identity" minOccurs="0"/>     <xs:element name="person" type="PersonName" minOccurs="0"/>     <xs:element name="contacts" type="ContactInformation" minOccurs="0"/>     <xs:element name="address" type="lrms:Address" minOccurs="0"/>     <xs:element name="device" type="TravelerDeviceSetting" minOccurs="0" maxOccurs="16"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element ContactSetting/agencyIdentifier

diagram
type	tmdd:Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="agencyIdentifier" type="tmdd:Organization-resource-identifier" minOccurs="0"/>

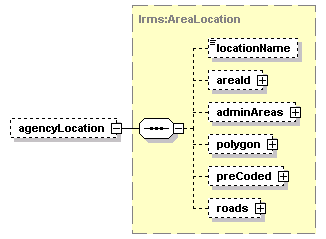

element ContactSetting/agencyLocation

diagram
type	lrms:AreaLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName areaId adminAreas polygon preCoded roads
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="agencyLocation" type="lrms:AreaLocation" minOccurs="0"/>

element ContactSetting/agencyName

diagram
type	tmdd:Link-ownership
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  256
source	<xs:element name="agencyName" type="tmdd:Link-ownership" minOccurs="0"/>

element ContactSetting/userIdentity

diagram
type	Traveler-Identity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="userIdentity" type="Traveler-Identity" minOccurs="0"/>

element ContactSetting/userSetting

diagram
type	Traveler-Setting
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="userSetting" type="Traveler-Setting" minOccurs="0"/>

element ContactSetting/deviceIdentity

diagram
type	Setting-Identity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="deviceIdentity" type="Setting-Identity" minOccurs="0"/>

element ContactSetting/person

diagram
type	PersonName
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	honorific firstName middleName lastName nameSuffix
source	<xs:element name="person" type="PersonName" minOccurs="0"/>

element ContactSetting/contacts

diagram
type	ContactInformation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	email phone deviceIdentity furtherData
source	<xs:element name="contacts" type="ContactInformation" minOccurs="0"/>

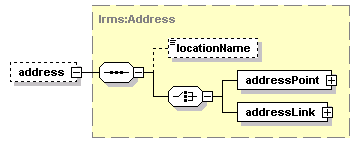

element ContactSetting/address

diagram
type	lrms:Address
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName addressPoint addressLink
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="address" type="lrms:Address" minOccurs="0"/>

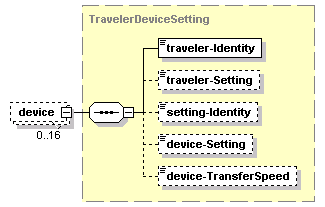

element ContactSetting/device

diagram
type	TravelerDeviceSetting
properties	isRef  0 minOcc  0 maxOcc  16 content  complex
children	traveler-Identity traveler-Setting setting-Identity device-Setting device-TransferSpeed
source	<xs:element name="device" type="TravelerDeviceSetting" minOccurs="0" maxOccurs="16"/>

element ContactSetting/tail

diagram
type	Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>
