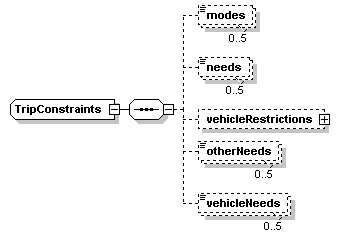

complexType TripConstraints

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	modes needs vehicleRestrictions otherNeeds vehicleNeeds
used by	element  RouteRequest/constraints
source	<xs:complexType name="TripConstraints">   <xs:sequence>     <xs:element name="modes" type="Mode" minOccurs="0" maxOccurs="5"/>     <xs:element name="needs" type="ADA-Access" minOccurs="0" maxOccurs="5"/>     <xs:element name="vehicleRestrictions" type="VehicleRestrictions" minOccurs="0"/>     <xs:element name="otherNeeds" type="AmenitiesList" minOccurs="0" maxOccurs="5"/>     <xs:element name="vehicleNeeds" type="AmenitiesList" minOccurs="0" maxOccurs="5"/>   </xs:sequence> </xs:complexType>

element TripConstraints/modes

diagram
type	Mode
properties	isRef  0 minOcc  0 maxOcc  5 content  simple
source	<xs:element name="modes" type="Mode" minOccurs="0" maxOccurs="5"/>

element TripConstraints/needs

diagram
type	ADA-Access
properties	isRef  0 minOcc  0 maxOcc  5 content  simple
source	<xs:element name="needs" type="ADA-Access" minOccurs="0" maxOccurs="5"/>

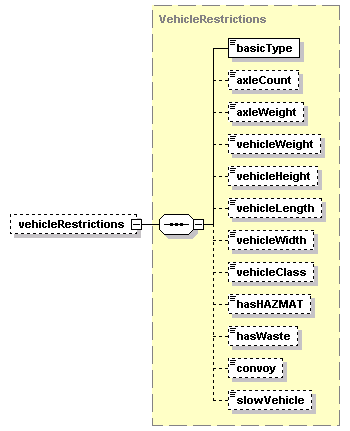

element TripConstraints/vehicleRestrictions

diagram
type	VehicleRestrictions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	basicType axleCount axleWeight vehicleWeight vehicleHeight vehicleLength vehicleWidth vehicleClass hasHAZMAT hasWaste convoy slowVehicle
source	<xs:element name="vehicleRestrictions" type="VehicleRestrictions" minOccurs="0"/>

element TripConstraints/otherNeeds

diagram
type	AmenitiesList
properties	isRef  0 minOcc  0 maxOcc  5 content  simple
source	<xs:element name="otherNeeds" type="AmenitiesList" minOccurs="0" maxOccurs="5"/>

element TripConstraints/vehicleNeeds

diagram
type	AmenitiesList
properties	isRef  0 minOcc  0 maxOcc  5 content  simple
source	<xs:element name="vehicleNeeds" type="AmenitiesList" minOccurs="0" maxOccurs="5"/>
