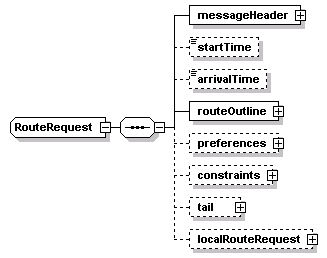

complexType RouteRequest
diagram
namespace http://www.ATIS-Draft-03-00-79
children messageHeader startTime arrivalTime routeOutline preferences constraints tail localRouteRequest
used by
elements tcip:PITripRequest/returnRequest routeRequest ATISMessage/routeRequest tcip:PITripRequest/tripRequest
source <xs:complexType name="RouteRequest">
  <xs:sequence>
    <xs:element name="messageHeader" type="MessageHeader"/>
    <xs:element name="startTime" type="DateTimePair" minOccurs="0"/>
    <xs:element name="arrivalTime" type="DateTimePair" minOccurs="0"/>
    <xs:element name="routeOutline" type="Route"/>
    <xs:element name="preferences" type="TripPreferences" minOccurs="0"/>
    <xs:element name="constraints" type="TripConstraints" minOccurs="0"/>
    <xs:element name="tail" type="Tail" minOccurs="0"/>
    <xs:element name="localRouteRequest" type="local:RouteRequest" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

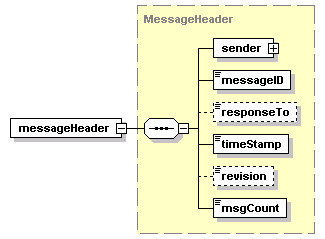

element RouteRequest/messageHeader
diagram
type MessageHeader
properties
isRef 0
content complex
children sender messageID responseTo timeStamp revision msgCount
source <xs:element name="messageHeader" type="MessageHeader"/>

element RouteRequest/startTime
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="startTime" type="DateTimePair" minOccurs="0"/>

element RouteRequest/arrivalTime
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="arrivalTime" type="DateTimePair" minOccurs="0"/>

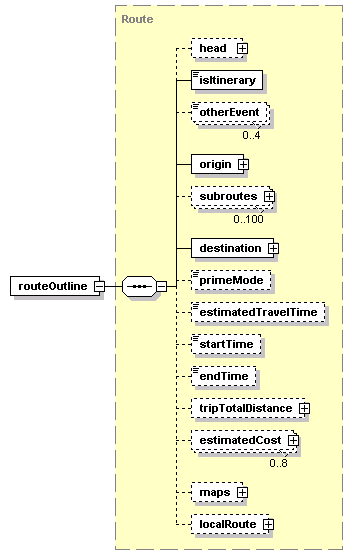

element RouteRequest/routeOutline
diagram
type Route
properties
isRef 0
content complex
children head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source <xs:element name="routeOutline" type="Route"/>

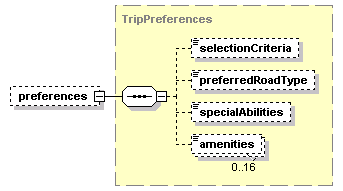

element RouteRequest/preferences
diagram
type TripPreferences
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children selectionCriteria preferredRoadType specialAbilities amenities
source <xs:element name="preferences" type="TripPreferences" minOccurs="0"/>

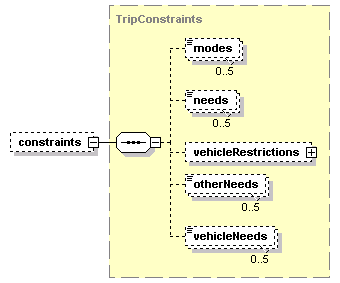

element RouteRequest/constraints
diagram
type TripConstraints
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children modes needs vehicleRestrictions otherNeeds vehicleNeeds
source <xs:element name="constraints" type="TripConstraints" minOccurs="0"/>

element RouteRequest/tail
diagram
type Tail
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children entry
source <xs:element name="tail" type="Tail" minOccurs="0"/>

element RouteRequest/localRouteRequest
diagram
type local:RouteRequest
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localRouteRequest" type="local:RouteRequest" minOccurs="0"/>
