complexType TripPreferences

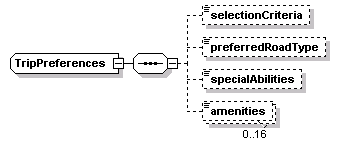

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	selectionCriteria preferredRoadType specialAbilities amenities
used by	element  RouteRequest/preferences
source	<xs:complexType name="TripPreferences">   <xs:sequence>     <xs:element name="selectionCriteria" type="RouteSelection" minOccurs="0"/>     <xs:element name="preferredRoadType" type="PreferredRoadType" minOccurs="0"/>     <xs:element name="specialAbilities" type="SpecialAbilities" minOccurs="0"/>     <xs:element name="amenities" type="AmenitiesList" minOccurs="0" maxOccurs="16"/>   </xs:sequence> </xs:complexType>

element TripPreferences/selectionCriteria

diagram
type	RouteSelection
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="selectionCriteria" type="RouteSelection" minOccurs="0"/>

element TripPreferences/preferredRoadType

diagram
type	PreferredRoadType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="preferredRoadType" type="PreferredRoadType" minOccurs="0"/>

element TripPreferences/specialAbilities

diagram
type	SpecialAbilities
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="specialAbilities" type="SpecialAbilities" minOccurs="0"/>

element TripPreferences/amenities

diagram
type	AmenitiesList
properties	isRef  0 minOcc  0 maxOcc  16 content  simple
source	<xs:element name="amenities" type="AmenitiesList" minOccurs="0" maxOccurs="16"/>
