complexType SnapshotItem
diagram Docs_p336.png
namespace http://www.DSRC-Draft-03-00-24
children itemTag value
used by
element Snapshot/deviceTypes/deviceType
source <xs:complexType name="SnapshotItem">

<xs:sequence>

<xs:element name="itemTag" type="VehicleStatusDeviceTypeTag"/>

<xs:element name="value" type="VehicleStatusDeviceType"/>

</xs:sequence>
</xs:complexType>

element SnapshotItem/itemTag
diagram Docs_p337.png
type VehicleStatusDeviceTypeTag
properties
isRef 0
content simple
source <xs:element name="itemTag" type="VehicleStatusDeviceTypeTag"/>

element SnapshotItem/value

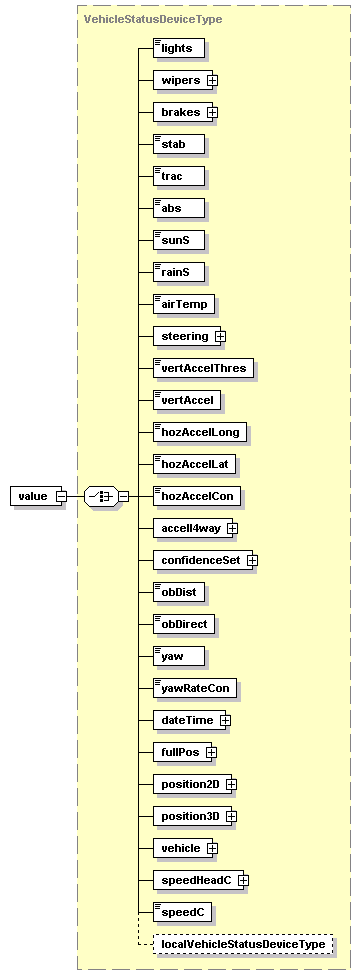

diagram Docs_p338.png
type VehicleStatusDeviceType
properties
isRef 0
content complex
children lights wipers brakes stab trac abs sunS rainS airTemp steering vertAccelThres vertAccel hozAccelLong hozAccelLat hozAccelCon accell4way confidenceSet obDist obDirect yaw yawRateCon dateTime fullPos position2D position3D vehicle speedHeadC speedC localVehicleStatusDeviceType
source <xs:element name="value" type="VehicleStatusDeviceType"/>
