complexType Snapshot
diagram Docs_p325.png
namespace http://www.DSRC-Draft-03-00-24
children thePosition cntVSDTs deviceTypes localSnapshot
used by
elements ProbeVehicleData/snapshots/snapshot ValueList/snapshot
source <xs:complexType name="Snapshot">
  <xs:sequence>
    <xs:element name="thePosition" type="FullPositionVector"/>
    <xs:element name="cntVSDTs">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:maxInclusive value="31"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="deviceTypes">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="31">
          <xs:element name="deviceType" type="SnapshotItem"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSnapshot" type="local:Snapshot" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

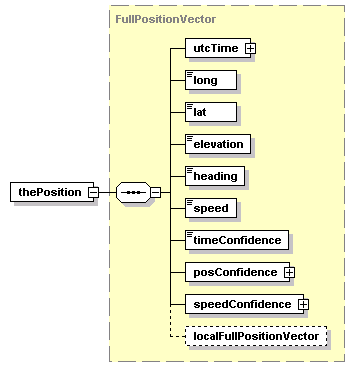

element Snapshot/thePosition
diagram Docs_p326.png
type FullPositionVector
properties
isRef 0
content complex
children utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source <xs:element name="thePosition" type="FullPositionVector"/>

element Snapshot/cntVSDTs
diagram Docs_p327.png
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
maxInclusive 31
source <xs:element name="cntVSDTs">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:maxInclusive value="31"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Snapshot/deviceTypes
diagram Docs_p328.png
properties
isRef 0
content complex
children deviceType
source <xs:element name="deviceTypes">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="31">
      <xs:element name="deviceType" type="SnapshotItem"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Snapshot/deviceTypes/deviceType
diagram Docs_p329.png
type SnapshotItem
properties
isRef 0
content complex
children itemTag value
source <xs:element name="deviceType" type="SnapshotItem"/>

element Snapshot/localSnapshot
diagram Docs_p330.png
type local:Snapshot
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localSnapshot" type="local:Snapshot" minOccurs="0"/>
