complexType VehicleMotionTrail
diagram Docs_p528.png
namespace http://www.DSRC-Draft-03-00-24
children initialPosition interval positions localVehicleMotionTrail
used by
element IntersectionCollision/vmt
source <xs:complexType name="VehicleMotionTrail">
  <xs:sequence>
    <xs:element name="initialPosition" type="FullPositionVector"/>
    <xs:element name="interval">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:maxInclusive value="250"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="positions">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="position" type="Blob1"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localVehicleMotionTrail" type="local:VehicleMotionTrail" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

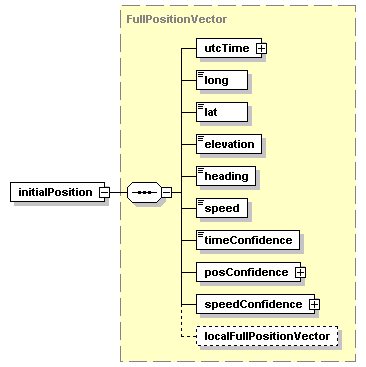

element VehicleMotionTrail/initialPosition
diagram Docs_p529.png
type FullPositionVector
properties
isRef 0
content complex
children utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
source <xs:element name="initialPosition" type="FullPositionVector"/>

element VehicleMotionTrail/interval
diagram Docs_p530.png
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
maxInclusive 250
source <xs:element name="interval">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:maxInclusive value="250"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element VehicleMotionTrail/positions
diagram Docs_p531.png
properties
isRef 0
content complex
children position
source <xs:element name="positions">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="position" type="Blob1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element VehicleMotionTrail/positions/position
diagram Docs_p532.png
type Blob1
properties
isRef 0
content complex
children item1 item2 item3
source <xs:element name="position" type="Blob1"/>

element VehicleMotionTrail/localVehicleMotionTrail
diagram Docs_p533.png
type local:VehicleMotionTrail
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localVehicleMotionTrail" type="local:VehicleMotionTrail" minOccurs="0"/>
