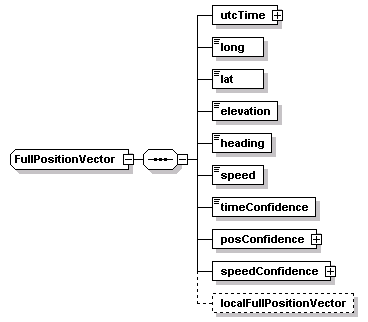

complexType FullPositionVector
diagram Docs_p167.png
namespace http://www.DSRC-Draft-03-00-24
children utcTime long lat elevation heading speed timeConfidence posConfidence speedConfidence localFullPositionVector
used by
elements VehicleStatusDeviceType/fullPos ValueList/fullPositionVector VehicleMotionTrail/initialPosition ProbeVehicleData/startVector Snapshot/thePosition
source <xs:complexType name="FullPositionVector">
  <xs:sequence>
    <xs:element name="utcTime" type="DDateTime"/>
    <xs:element name="long" type="Longitude"/>
    <xs:element name="lat" type="Latitude"/>
    <xs:element name="elevation" type="Elevation"/>
    <xs:element name="heading" type="Heading"/>
    <xs:element name="speed" type="Speed"/>
    <xs:element name="timeConfidence" type="TimeConfidence"/>
    <xs:element name="posConfidence" type="PositionConfidenceSet"/>
    <xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>
    <xs:element name="localFullPositionVector" type="local:FullPositionVector" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element FullPositionVector/utcTime
diagram Docs_p168.png
type DDateTime
properties
isRef 0
content complex
children year month day hour minute second
source <xs:element name="utcTime" type="DDateTime"/>

element FullPositionVector/long
diagram Docs_p169.png
type Longitude
properties
isRef 0
content simple
facets
minInclusive -1440000000
maxInclusive 1440000000
source <xs:element name="long" type="Longitude"/>

element FullPositionVector/lat
diagram Docs_p170.png
type Latitude
properties
isRef 0
content simple
facets
minInclusive -720000000
maxInclusive 720000000
source <xs:element name="lat" type="Latitude"/>

element FullPositionVector/elevation
diagram Docs_p171.png
type Elevation
properties
isRef 0
content simple
source <xs:element name="elevation" type="Elevation"/>

element FullPositionVector/heading
diagram Docs_p172.png
type Heading
properties
isRef 0
content simple
source <xs:element name="heading" type="Heading"/>

element FullPositionVector/speed
diagram Docs_p173.png
type Speed
properties
isRef 0
content simple
facets
minInclusive -32765
maxInclusive 32765
source <xs:element name="speed" type="Speed"/>

element FullPositionVector/timeConfidence
diagram Docs_p174.png
type TimeConfidence
properties
isRef 0
content simple
source <xs:element name="timeConfidence" type="TimeConfidence"/>

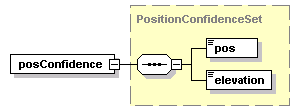

element FullPositionVector/posConfidence
diagram Docs_p175.png
type PositionConfidenceSet
properties
isRef 0
content complex
children pos elevation
source <xs:element name="posConfidence" type="PositionConfidenceSet"/>

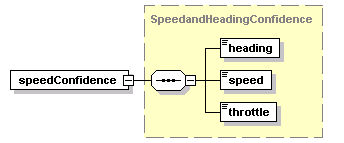

element FullPositionVector/speedConfidence
diagram Docs_p176.png
type SpeedandHeadingConfidence
properties
isRef 0
content complex
children heading speed throttle
source <xs:element name="speedConfidence" type="SpeedandHeadingConfidence"/>

element FullPositionVector/localFullPositionVector
diagram Docs_p177.png
type local:FullPositionVector
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localFullPositionVector" type="local:FullPositionVector" minOccurs="0"/>
