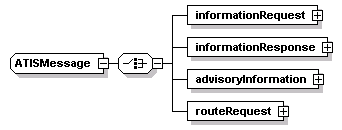

complexType ATISMessage
diagram
namespace http://www.ATIS-Draft-03-00-79
children informationRequest informationResponse advisoryInformation routeRequest
used by
element atisMessage
source <xs:complexType name="ATISMessage">
  <xs:choice>
    <xs:element name="informationRequest" type="InformationRequest"/>
    <xs:element name="informationResponse" type="InformationResponse"/>
    <xs:element name="advisoryInformation" type="AdvisoryInformation"/>
    <xs:element name="routeRequest" type="RouteRequest"/>
    <!-- systemStatusRequest    SystemStatusRequest,
         systemStatusResponse   SystemStatusReponse, -->
  </xs:choice>
</xs:complexType>

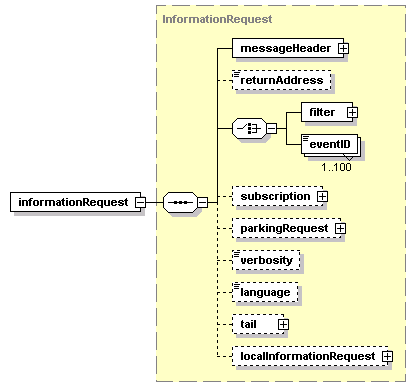

element ATISMessage/informationRequest
diagram
type InformationRequest
properties
isRef 0
content complex
children messageHeader returnAddress filter eventID subscription parkingRequest verbosity language tail localInformationRequest
source <xs:element name="informationRequest" type="InformationRequest"/>

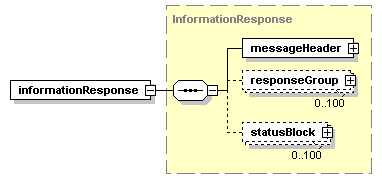

element ATISMessage/informationResponse
diagram
type InformationResponse
properties
isRef 0
content complex
children messageHeader responseGroup statusBlock
source <xs:element name="informationResponse" type="InformationResponse"/>

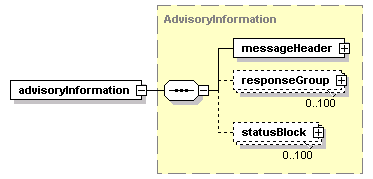

element ATISMessage/advisoryInformation
diagram
type AdvisoryInformation
properties
isRef 0
content complex
children messageHeader responseGroup statusBlock
source <xs:element name="advisoryInformation" type="AdvisoryInformation"/>

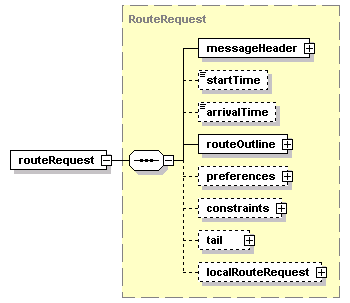

element ATISMessage/routeRequest
diagram
type RouteRequest
properties
isRef 0
content complex
children messageHeader startTime arrivalTime routeOutline preferences constraints tail localRouteRequest
source <xs:element name="routeRequest" type="RouteRequest"/>
