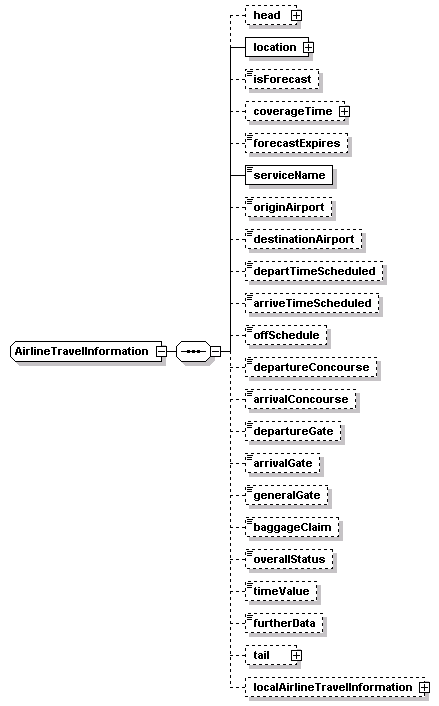

complexType AirlineTravelInformation
diagram
namespace http://www.ATIS-Draft-03-00-79
children head location isForecast coverageTime forecastExpires serviceName originAirport destinationAirport departTimeScheduled arriveTimeScheduled offSchedule departureConcourse arrivalConcourse departureGate arrivalGate generalGate baggageClaim overallStatus timeValue furtherData tail localAirlineTravelInformation
used by
element ResponseGroup/flight
source <xs:complexType name="AirlineTravelInformation">
  <xs:sequence>
    <xs:element name="head" type="Head" minOccurs="0"/>
    <xs:element name="location" type="lrms:LocationReference"/>
    <!-- location for which this applies -->
    <xs:element name="isForecast" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:boolean"/>
      </xs:simpleType>
    </xs:element>
    <!-- forecast or predicted period -->
    <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>
    <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>
    <xs:element name="serviceName" type="Name"/>
    <!-- flight or service name -->
    <xs:element name="originAirport" type="AirportCode" minOccurs="0"/>
    <!-- OPTIONAL   when the origin is known,  such
         as an all departing flight sign board -->
    <xs:element name="destinationAirport" type="AirportCode" minOccurs="0"/>
    <xs:element name="departTimeScheduled" type="DateTimePair" minOccurs="0"/>
    <xs:element name="arriveTimeScheduled" type="DateTimePair" minOccurs="0"/>
    <xs:element name="offSchedule" type="tcip:PI-OffSchedule" minOccurs="0"/>
    <xs:element name="departureConcourse" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="arrivalConcourse" type="Flight-GateNumber" minOccurs="0"/>
    <!-- used only when needed in large airports
         with overlapping gate mumbering systems -->
    <xs:element name="departureGate" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="arrivalGate" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="generalGate" type="Flight-GateNumber" minOccurs="0"/>
    <!-- use with commuter flights when multiple
         flights all leave from the same gate/area -->
    <xs:element name="baggageClaim" type="Flight-GateNumber" minOccurs="0"/>
    <xs:element name="overallStatus" type="itis:DelayStatusCancellation" minOccurs="0"/>
    <!-- use &quot;Regular service&quot; when conditions are normal -->
    <xs:element name="timeValue" type="TimeInterval" minOccurs="0"/>
    <!-- if status is a type of delay this provides
         the current estimate of time,  if travel time
         is used in the ITIS codes this provides a
         trip duration  (units are minutes in all uses) -->
    <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
    <xs:element name="tail" type="Tail" minOccurs="0"/>
    <!-- linkages to related event messages such as
         weather would be inserted in the references
         of the header section -->
    <xs:element name="localAirlineTravelInformation" type="local:AirlineTravelInformation" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

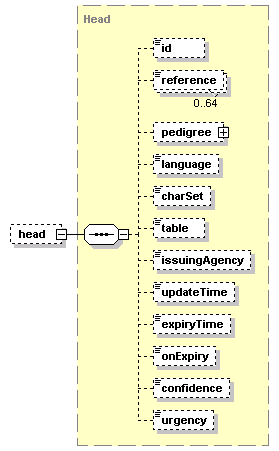

element AirlineTravelInformation/head
diagram
type Head
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source <xs:element name="head" type="Head" minOccurs="0"/>

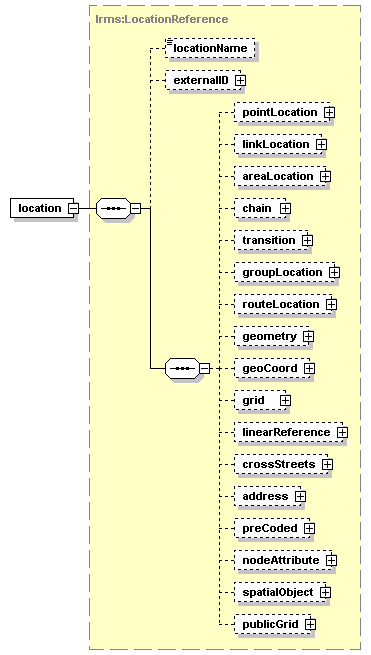

element AirlineTravelInformation/location
diagram
type lrms:LocationReference
properties
isRef 0
content complex
children locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes
Name  Type  Use  Default  Fixed  annotation
locationIDlrms:String-index64
source <xs:element name="location" type="lrms:LocationReference"/>

element AirlineTravelInformation/isForecast
diagram
type restriction of xs:boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="isForecast" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:boolean"/>
  </xs:simpleType>
</xs:element>

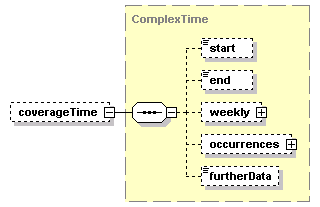

element AirlineTravelInformation/coverageTime
diagram
type ComplexTime
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children start end weekly occurrences furtherData
source <xs:element name="coverageTime" type="ComplexTime" minOccurs="0"/>

element AirlineTravelInformation/forecastExpires
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="forecastExpires" type="DateTimePair" minOccurs="0"/>

element AirlineTravelInformation/serviceName
diagram
type Name
properties
isRef 0
content simple
facets
minLength 1
maxLength 30
source <xs:element name="serviceName" type="Name"/>

element AirlineTravelInformation/originAirport
diagram
type AirportCode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
length 3
source <xs:element name="originAirport" type="AirportCode" minOccurs="0"/>

element AirlineTravelInformation/destinationAirport
diagram
type AirportCode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
length 3
source <xs:element name="destinationAirport" type="AirportCode" minOccurs="0"/>

element AirlineTravelInformation/departTimeScheduled
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="departTimeScheduled" type="DateTimePair" minOccurs="0"/>

element AirlineTravelInformation/arriveTimeScheduled
diagram
type DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="arriveTimeScheduled" type="DateTimePair" minOccurs="0"/>

element AirlineTravelInformation/offSchedule
diagram
type tcip:PI-OffSchedule
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="offSchedule" type="tcip:PI-OffSchedule" minOccurs="0"/>

element AirlineTravelInformation/departureConcourse
diagram
type Flight-GateNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 6
source <xs:element name="departureConcourse" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/arrivalConcourse
diagram
type Flight-GateNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 6
source <xs:element name="arrivalConcourse" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/departureGate
diagram
type Flight-GateNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 6
source <xs:element name="departureGate" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/arrivalGate
diagram
type Flight-GateNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 6
source <xs:element name="arrivalGate" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/generalGate
diagram
type Flight-GateNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 6
source <xs:element name="generalGate" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/baggageClaim
diagram
type Flight-GateNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 6
source <xs:element name="baggageClaim" type="Flight-GateNumber" minOccurs="0"/>

element AirlineTravelInformation/overallStatus
diagram
type itis:DelayStatusCancellation
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="overallStatus" type="itis:DelayStatusCancellation" minOccurs="0"/>

element AirlineTravelInformation/timeValue
diagram
type TimeInterval
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="timeValue" type="TimeInterval" minOccurs="0"/>

element AirlineTravelInformation/furtherData
diagram
type URL-Link
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element AirlineTravelInformation/tail
diagram
type Tail
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children entry
source <xs:element name="tail" type="Tail" minOccurs="0"/>

element AirlineTravelInformation/localAirlineTravelInformation
diagram
type local:AirlineTravelInformation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localAirlineTravelInformation" type="local:AirlineTravelInformation" minOccurs="0"/>
