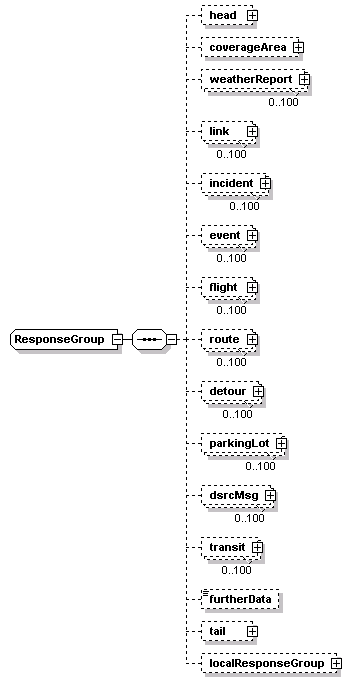

complexType ResponseGroup

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	head coverageArea weatherReport link incident event flight route detour parkingLot dsrcMsg transit furtherData tail localResponseGroup
used by	elements  SubRoute/events AdvisoryInformation/responseGroup InformationResponse/responseGroup
source	<xs:complexType name="ResponseGroup">   <xs:sequence>     <xs:element name="head" type="Head" minOccurs="0"/>     <!-- basic meta data for the whole group -->     <xs:element name="coverageArea" type="lrms:LocationReference" minOccurs="0"/>     <xs:element name="weatherReport" type="WeatherInformation" minOccurs="0" maxOccurs="100"/>     <xs:element name="link" type="LinkTrafficInformation" minOccurs="0" maxOccurs="100"/>     <xs:element name="incident" type="IncidentInformation" minOccurs="0" maxOccurs="100"/>     <xs:element name="event" type="EventInformation" minOccurs="0" maxOccurs="100"/>     <xs:element name="flight" type="AirlineTravelInformation" minOccurs="0" maxOccurs="100"/>     <xs:element name="route" type="Route" minOccurs="0" maxOccurs="100"/>     <xs:element name="detour" type="Route" minOccurs="0" maxOccurs="100"/>     <xs:element name="parkingLot" type="ParkingLotInformation" minOccurs="0" maxOccurs="100"/>     <xs:element name="dsrcMsg" type="RoadSideAlert" minOccurs="0" maxOccurs="100"/>     <xs:element name="transit" type="TransitInformation" minOccurs="0" maxOccurs="100"/>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>     <xs:element name="localResponseGroup" type="local:ResponseGroup" minOccurs="0"/>   </xs:sequence> </xs:complexType>

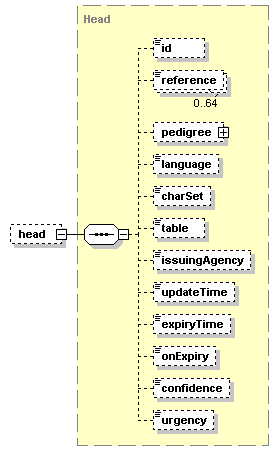

element ResponseGroup/head

diagram
type	Head
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	id reference pedigree language charSet table issuingAgency updateTime expiryTime onExpiry confidence urgency
source	<xs:element name="head" type="Head" minOccurs="0"/>

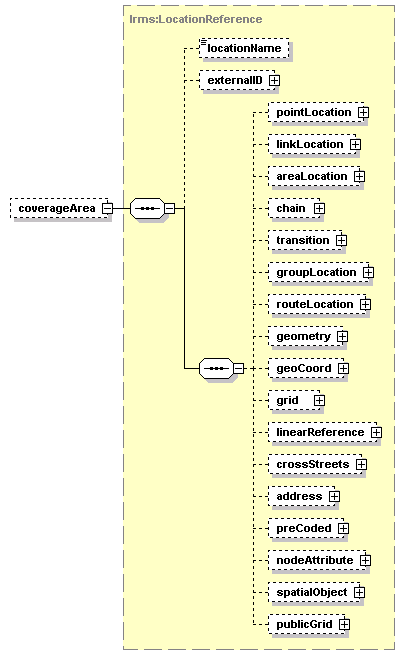

element ResponseGroup/coverageArea

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="coverageArea" type="lrms:LocationReference" minOccurs="0"/>

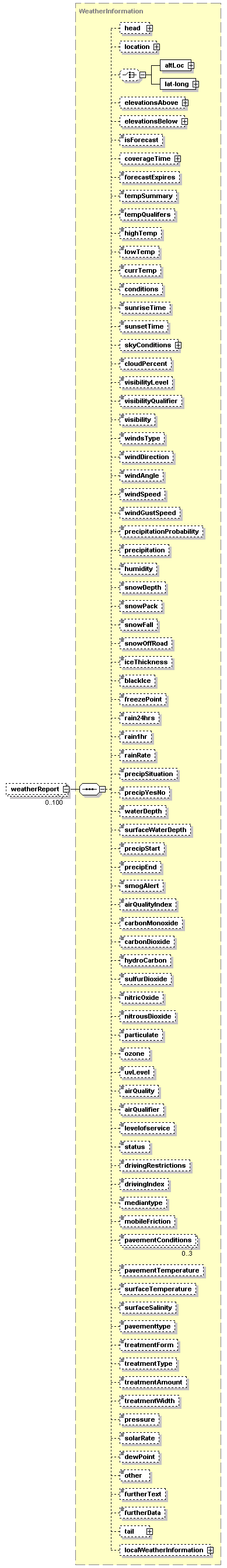

element ResponseGroup/weatherReport

diagram
type	WeatherInformation
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head location altLoc lat-long elevationsAbove elevationsBelow isForecast coverageTime forecastExpires tempSummary tempQualifers highTemp lowTemp currTemp conditions sunriseTime sunsetTime skyConditions cloudPercent visibilityLevel visibilityQualifier visibility windsType windDirection windAngle windSpeed windGustSpeed precipitationProbability precipitation humidity snowDepth snowPack snowFall snowOffRoad iceThickness blackIce freezePoint rain24hrs rain1hr rainRate precipSituation precipYesNo waterDepth surfaceWaterDepth precipStart precipEnd smogAlert airQualityIndex carbonMonoxide carbonDioxide hydroCarbon sulfurDioxide nitricOxide nitrousDioxide particulate ozone uvLevel airQuality airQualifier levelofservice status drivingRestrictions drivingIndex mediantype mobileFriction pavementConditions pavementTemperature surfaceTemperature surfaceSalinity pavementtype treatmentForm treatmentType treatmentAmount treatmentWidth pressure solarRate dewPoint other furtherText furtherData tail localWeatherInformation
source	<xs:element name="weatherReport" type="WeatherInformation" minOccurs="0" maxOccurs="100"/>

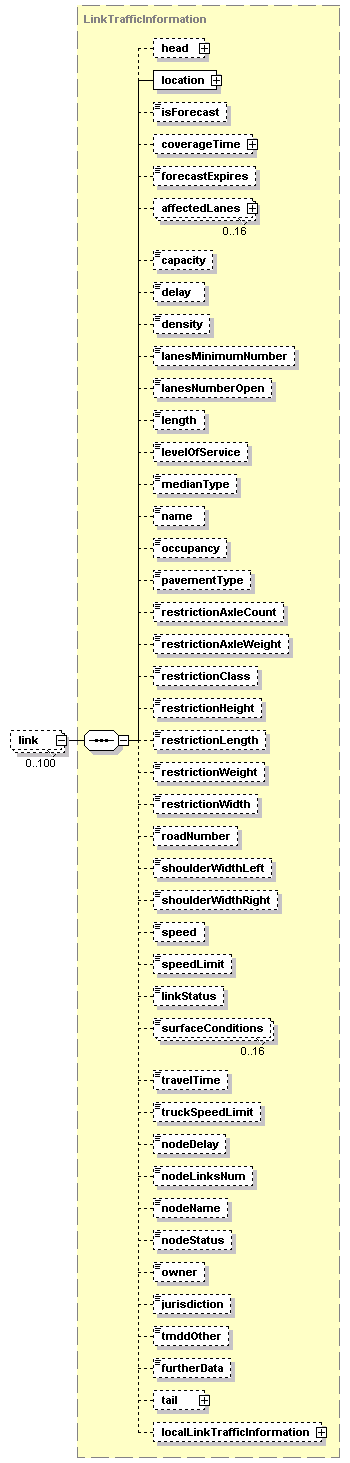

element ResponseGroup/link

diagram
type	LinkTrafficInformation
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head location isForecast coverageTime forecastExpires affectedLanes capacity delay density lanesMinimumNumber lanesNumberOpen length levelOfService medianType name occupancy pavementType restrictionAxleCount restrictionAxleWeight restrictionClass restrictionHeight restrictionLength restrictionWeight restrictionWidth roadNumber shoulderWidthLeft shoulderWidthRight speed speedLimit linkStatus surfaceConditions travelTime truckSpeedLimit nodeDelay nodeLinksNum nodeName nodeStatus owner jurisdiction tmddOther furtherData tail localLinkTrafficInformation
source	<xs:element name="link" type="LinkTrafficInformation" minOccurs="0" maxOccurs="100"/>

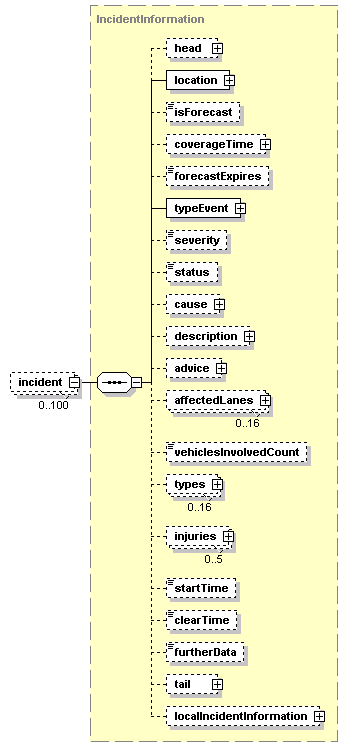

element ResponseGroup/incident

diagram
type	IncidentInformation
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head location isForecast coverageTime forecastExpires typeEvent severity status cause description advice affectedLanes vehiclesInvolvedCount types injuries startTime clearTime furtherData tail localIncidentInformation
source	<xs:element name="incident" type="IncidentInformation" minOccurs="0" maxOccurs="100"/>

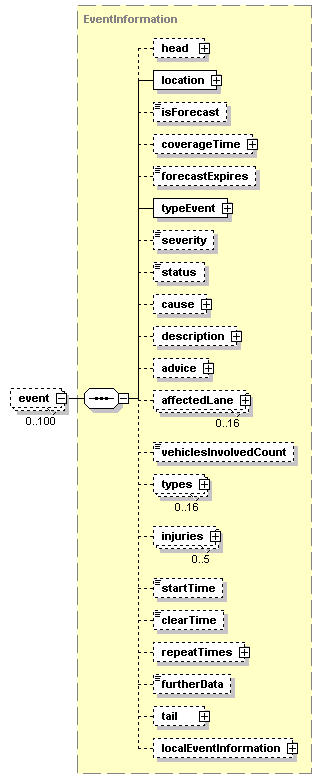

element ResponseGroup/event

diagram
type	EventInformation
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head location isForecast coverageTime forecastExpires typeEvent severity status cause description advice affectedLane vehiclesInvolvedCount types injuries startTime clearTime repeatTimes furtherData tail localEventInformation
source	<xs:element name="event" type="EventInformation" minOccurs="0" maxOccurs="100"/>

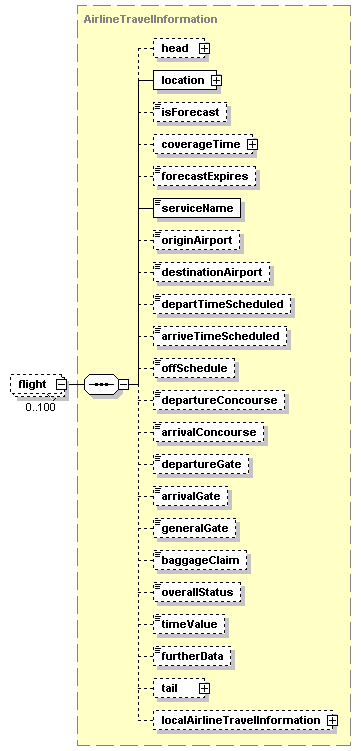

element ResponseGroup/flight

diagram
type	AirlineTravelInformation
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head location isForecast coverageTime forecastExpires serviceName originAirport destinationAirport departTimeScheduled arriveTimeScheduled offSchedule departureConcourse arrivalConcourse departureGate arrivalGate generalGate baggageClaim overallStatus timeValue furtherData tail localAirlineTravelInformation
source	<xs:element name="flight" type="AirlineTravelInformation" minOccurs="0" maxOccurs="100"/>

element ResponseGroup/route

diagram
type	Route
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source	<xs:element name="route" type="Route" minOccurs="0" maxOccurs="100"/>

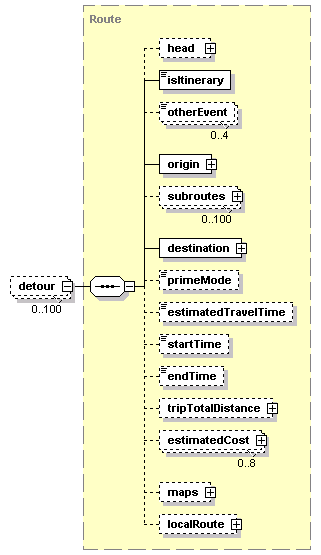

element ResponseGroup/detour

diagram
type	Route
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source	<xs:element name="detour" type="Route" minOccurs="0" maxOccurs="100"/>

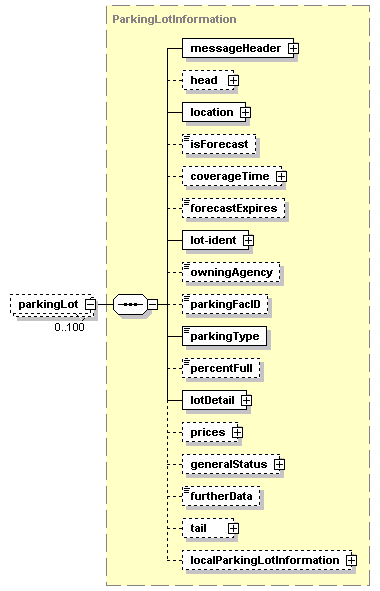

element ResponseGroup/parkingLot

diagram
type	ParkingLotInformation
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	messageHeader head location isForecast coverageTime forecastExpires lot-ident owningAgency parkingFacID parkingType percentFull lotDetail prices generalStatus furtherData tail localParkingLotInformation
source	<xs:element name="parkingLot" type="ParkingLotInformation" minOccurs="0" maxOccurs="100"/>

element ResponseGroup/dsrcMsg

diagram
type	RoadSideAlert
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	typeEvent description priority extent spaceVector furtherInfoID
source	<xs:element name="dsrcMsg" type="RoadSideAlert" minOccurs="0" maxOccurs="100"/>

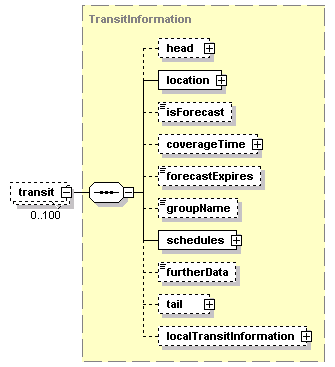

element ResponseGroup/transit

diagram
type	TransitInformation
properties	isRef  0 minOcc  0 maxOcc  100 content  complex
children	head location isForecast coverageTime forecastExpires groupName schedules furtherData tail localTransitInformation
source	<xs:element name="transit" type="TransitInformation" minOccurs="0" maxOccurs="100"/>

element ResponseGroup/furtherData

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element ResponseGroup/tail

diagram
type	Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>

element ResponseGroup/localResponseGroup

diagram
type	local:ResponseGroup
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localResponseGroup" type="local:ResponseGroup" minOccurs="0"/>
