complexType lrms:Address

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	locationName addressPoint addressLink
used by	elements  ContactSetting/address lrms:LocationReference/address
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="Address">   <xs:sequence>     <xs:element name="locationName" type="Text-name255" minOccurs="0"/>     <xs:choice>       <xs:element name="addressPoint" type="AddressPoint"/>       <xs:element name="addressLink" type="AddressLink"/>     </xs:choice>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:Address/locationName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="locationName" type="Text-name255" minOccurs="0"/>

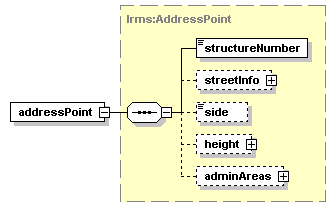

element lrms:Address/addressPoint

diagram
type	lrms:AddressPoint
properties	isRef  0 content  complex
children	structureNumber streetInfo side height adminAreas
source	<xs:element name="addressPoint" type="AddressPoint"/>

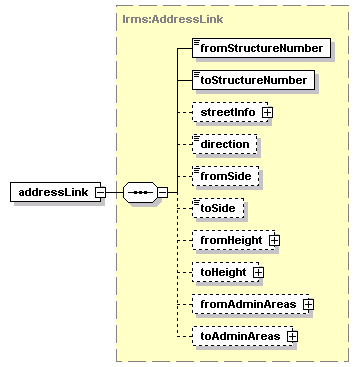

element lrms:Address/addressLink

diagram
type	lrms:AddressLink
properties	isRef  0 content  complex
children	fromStructureNumber toStructureNumber streetInfo direction fromSide toSide fromHeight toHeight fromAdminAreas toAdminAreas
source	<xs:element name="addressLink" type="AddressLink"/>
