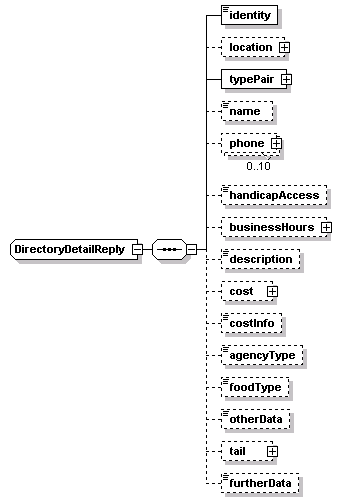

complexType DirectoryDetailReply

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	identity location typePair name phone handicapAccess businessHours description cost costInfo agencyType foodType otherData tail furtherData
used by	elements  directoryDetailReply DirectoryExtendedInformationEntry/information
source	<xs:complexType name="DirectoryDetailReply">   <xs:sequence>     <xs:element name="identity" type="Identity"/>     <xs:element name="location" type="lrms:LocationReference" minOccurs="0"/>     <xs:element name="typePair" type="DirectoryTypePair"/>     <xs:element name="name" type="Name" minOccurs="0"/>     <xs:element name="phone" type="PhoneInformation" minOccurs="0" maxOccurs="10"/>     <xs:element name="handicapAccess" type="ADA-Access" minOccurs="0"/>     <xs:element name="businessHours" type="TimePair" minOccurs="0"/>     <xs:element name="description" type="Description" minOccurs="0"/>     <xs:element name="cost" type="Cost" minOccurs="0"/>     <xs:element name="costInfo" type="Freetext" minOccurs="0"/>     <xs:element name="agencyType" type="GovernmentSubType" minOccurs="0"/>     <xs:element name="foodType" type="RestaurantSubType" minOccurs="0"/>     <xs:element name="otherData" type="ExtendedInfo" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DirectoryDetailReply/identity

diagram
type	Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  9
source	<xs:element name="identity" type="Identity"/>

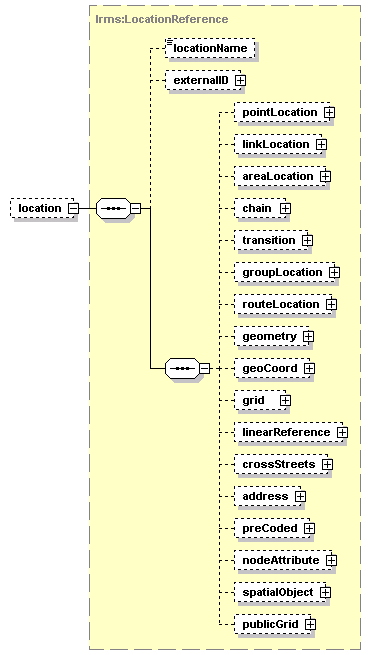

element DirectoryDetailReply/location

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="location" type="lrms:LocationReference" minOccurs="0"/>

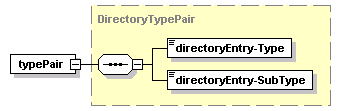

element DirectoryDetailReply/typePair

diagram
type	DirectoryTypePair
properties	isRef  0 content  complex
children	directoryEntry-Type directoryEntry-SubType
source	<xs:element name="typePair" type="DirectoryTypePair"/>

element DirectoryDetailReply/name

diagram
type	Name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="name" type="Name" minOccurs="0"/>

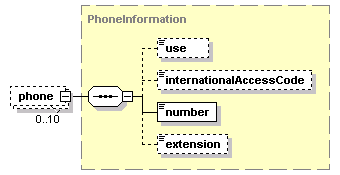

element DirectoryDetailReply/phone

diagram
type	PhoneInformation
properties	isRef  0 minOcc  0 maxOcc  10 content  complex
children	use internationalAccessCode number extension
source	<xs:element name="phone" type="PhoneInformation" minOccurs="0" maxOccurs="10"/>

element DirectoryDetailReply/handicapAccess

diagram
type	ADA-Access
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="handicapAccess" type="ADA-Access" minOccurs="0"/>

element DirectoryDetailReply/businessHours

diagram
type	TimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end
source	<xs:element name="businessHours" type="TimePair" minOccurs="0"/>

element DirectoryDetailReply/description

diagram
type	Description
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  200
source	<xs:element name="description" type="Description" minOccurs="0"/>

element DirectoryDetailReply/cost

diagram
type	Cost
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	value currencyUnit
source	<xs:element name="cost" type="Cost" minOccurs="0"/>

element DirectoryDetailReply/costInfo

diagram
type	Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="costInfo" type="Freetext" minOccurs="0"/>

element DirectoryDetailReply/agencyType

diagram
type	GovernmentSubType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agencyType" type="GovernmentSubType" minOccurs="0"/>

element DirectoryDetailReply/foodType

diagram
type	RestaurantSubType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="foodType" type="RestaurantSubType" minOccurs="0"/>

element DirectoryDetailReply/otherData

diagram
type	ExtendedInfo
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	minLength  2 maxLength  2666667
attributes	Name   Type   Use   Default   Fixed   annotation EncodingType derived by: xs:NMTOKEN required
source	<xs:element name="otherData" type="ExtendedInfo" minOccurs="0"/>

element DirectoryDetailReply/tail

diagram
type	Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>

element DirectoryDetailReply/furtherData

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
