complexType PhoneInformation

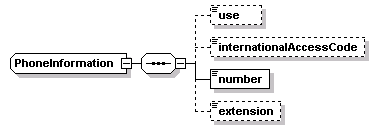

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	use internationalAccessCode number extension
used by	elements  DirectoryDetailReply/phone ContactInformation/phone DirectoryEntry/phone RouteStatus/phone
source	<xs:complexType name="PhoneInformation">   <xs:sequence>     <xs:element name="use" type="PhoneRole" minOccurs="0"/>     <xs:element name="internationalAccessCode" type="InternationalAccessCode" minOccurs="0"/>     <xs:element name="number" type="Phone"/>     <xs:element name="extension" type="Extension" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element PhoneInformation/use

diagram
type	PhoneRole
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="use" type="PhoneRole" minOccurs="0"/>

element PhoneInformation/internationalAccessCode

diagram
type	InternationalAccessCode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  3 pattern  \d*
source	<xs:element name="internationalAccessCode" type="InternationalAccessCode" minOccurs="0"/>

element PhoneInformation/number

diagram
type	Phone
properties	isRef  0 content  simple
facets	minLength  4 maxLength  15 pattern  \d*
source	<xs:element name="number" type="Phone"/>

element PhoneInformation/extension

diagram
type	Extension
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  4 pattern  \d*
source	<xs:element name="extension" type="Extension" minOccurs="0"/>
