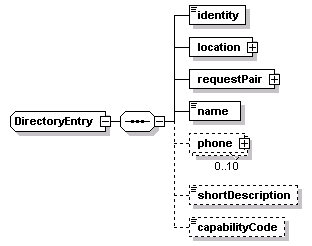

complexType DirectoryEntry

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	identity location requestPair name phone shortDescription capabilityCode
used by	element  DirectoryInformation/directoryInformation-item
source	<xs:complexType name="DirectoryEntry">   <xs:sequence>     <xs:element name="identity" type="Identity"/>     <xs:element name="location" type="lrms:LocationReference"/>     <xs:element name="requestPair" type="DirectoryTypePair"/>     <xs:element name="name" type="Name"/>     <xs:element name="phone" type="PhoneInformation" minOccurs="0" maxOccurs="10"/>     <xs:element name="shortDescription" type="ShortDescription" minOccurs="0"/>     <xs:element name="capabilityCode" type="CapabilityCode" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DirectoryEntry/identity

diagram
type	Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  9
source	<xs:element name="identity" type="Identity"/>

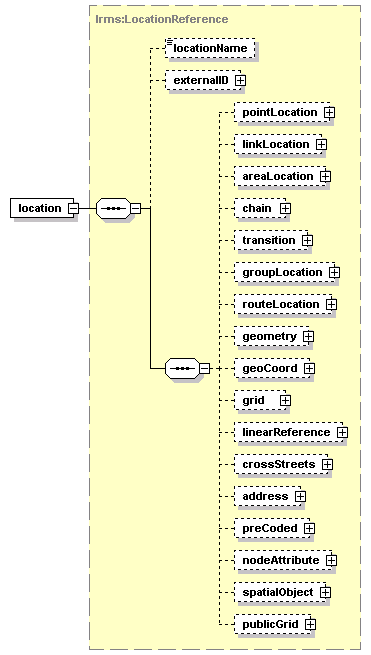

element DirectoryEntry/location

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="location" type="lrms:LocationReference"/>

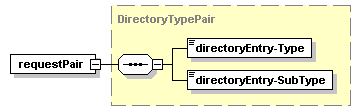

element DirectoryEntry/requestPair

diagram
type	DirectoryTypePair
properties	isRef  0 content  complex
children	directoryEntry-Type directoryEntry-SubType
source	<xs:element name="requestPair" type="DirectoryTypePair"/>

element DirectoryEntry/name

diagram
type	Name
properties	isRef  0 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="name" type="Name"/>

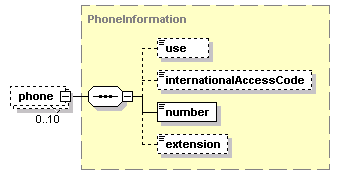

element DirectoryEntry/phone

diagram
type	PhoneInformation
properties	isRef  0 minOcc  0 maxOcc  10 content  complex
children	use internationalAccessCode number extension
source	<xs:element name="phone" type="PhoneInformation" minOccurs="0" maxOccurs="10"/>

element DirectoryEntry/shortDescription

diagram
type	ShortDescription
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="shortDescription" type="ShortDescription" minOccurs="0"/>

element DirectoryEntry/capabilityCode

diagram
type	CapabilityCode
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="capabilityCode" type="CapabilityCode" minOccurs="0"/>
