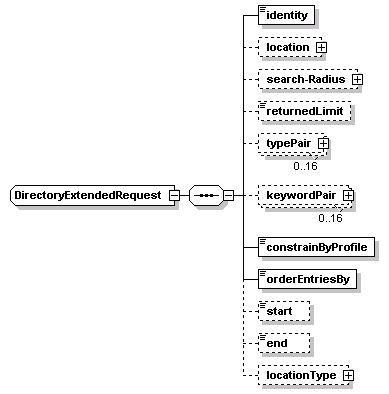

complexType DirectoryExtendedRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	identity location search-Radius returnedLimit typePair keywordPair constrainByProfile orderEntriesBy start end locationType
used by	element  directoryExtendedRequest
source	<xs:complexType name="DirectoryExtendedRequest">   <xs:sequence>     <xs:element name="identity" type="Traveler-Identity"/>     <xs:element name="location" type="RouteOrLocation" minOccurs="0"/>     <xs:element name="search-Radius" type="SearchRadius" minOccurs="0"/>     <xs:element name="returnedLimit" type="LimitReturns" minOccurs="0"/>     <xs:element name="typePair" type="DirectoryTypePair" minOccurs="0" maxOccurs="16"/>     <xs:element name="keywordPair" type="DirectoryKeywordPair" minOccurs="0" maxOccurs="16"/>     <xs:element name="constrainByProfile" type="ConstrainByProfile"/>     <xs:element name="orderEntriesBy" type="OrderEntriesBy"/>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <xs:element name="end" type="DateTimePair" minOccurs="0"/>     <xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DirectoryExtendedRequest/identity

diagram
type	Traveler-Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="identity" type="Traveler-Identity"/>

element DirectoryExtendedRequest/location

diagram
type	RouteOrLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route id location
source	<xs:element name="location" type="RouteOrLocation" minOccurs="0"/>

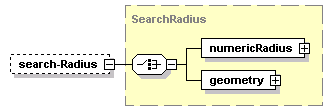

element DirectoryExtendedRequest/search-Radius

diagram
type	SearchRadius
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	numericRadius geometry
source	<xs:element name="search-Radius" type="SearchRadius" minOccurs="0"/>

element DirectoryExtendedRequest/returnedLimit

diagram
type	LimitReturns
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1
source	<xs:element name="returnedLimit" type="LimitReturns" minOccurs="0"/>

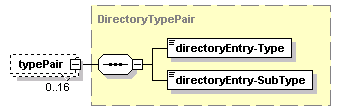

element DirectoryExtendedRequest/typePair

diagram
type	DirectoryTypePair
properties	isRef  0 minOcc  0 maxOcc  16 content  complex
children	directoryEntry-Type directoryEntry-SubType
source	<xs:element name="typePair" type="DirectoryTypePair" minOccurs="0" maxOccurs="16"/>

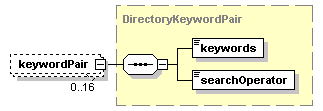

element DirectoryExtendedRequest/keywordPair

diagram
type	DirectoryKeywordPair
properties	isRef  0 minOcc  0 maxOcc  16 content  complex
children	keywords searchOperator
source	<xs:element name="keywordPair" type="DirectoryKeywordPair" minOccurs="0" maxOccurs="16"/>

element DirectoryExtendedRequest/constrainByProfile

diagram
type	ConstrainByProfile
properties	isRef  0 content  simple
source	<xs:element name="constrainByProfile" type="ConstrainByProfile"/>

element DirectoryExtendedRequest/orderEntriesBy

diagram
type	OrderEntriesBy
properties	isRef  0 content  simple
source	<xs:element name="orderEntriesBy" type="OrderEntriesBy"/>

element DirectoryExtendedRequest/start

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element DirectoryExtendedRequest/end

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

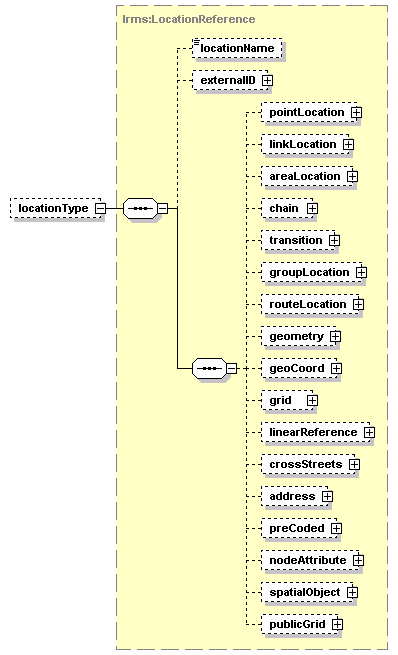

element DirectoryExtendedRequest/locationType

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>
