complexType RouteOrLocation

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	route id location
used by	elements  DirectoryCoreRequest/entry-Location DirectoryExtendedRequest/location InformationRequest/filter/location
source	<xs:complexType name="RouteOrLocation">   <xs:choice>     <xs:element name="route" type="Route"/>     <!-- a complex multi-mode route -->     <xs:element name="id" type="im:ReferenceID"/>     <!-- a ref to a known route -->     <xs:element name="location" type="lrms:LocationReference"/>     <!-- any valid LRMS profile          may include points,  areas,  named segments,  etc -->   </xs:choice> </xs:complexType>

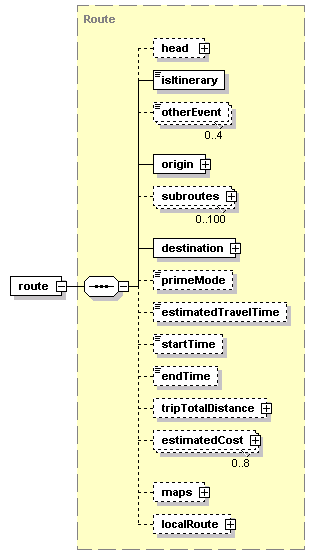

element RouteOrLocation/route

diagram
type	Route
properties	isRef  0 content  complex
children	head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source	<xs:element name="route" type="Route"/>

element RouteOrLocation/id

diagram
type	im:ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="id" type="im:ReferenceID"/>

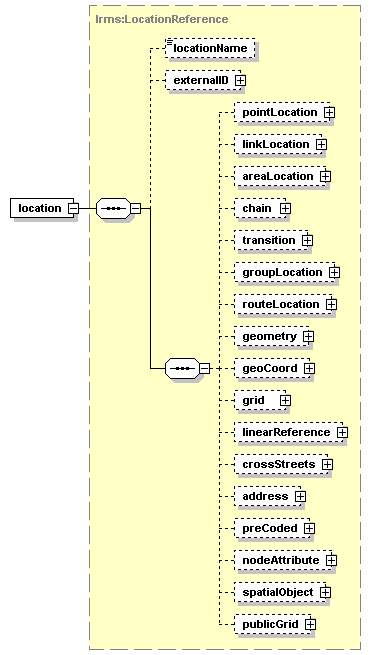

element RouteOrLocation/location

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="location" type="lrms:LocationReference"/>
