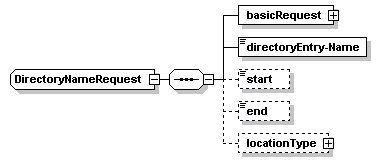

complexType DirectoryNameRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	basicRequest directoryEntry-Name start end locationType
used by	element  directoryNameRequest
source	<xs:complexType name="DirectoryNameRequest">   <xs:sequence>     <xs:element name="basicRequest" type="DirectoryCoreRequest"/>     <xs:element name="directoryEntry-Name" type="Name"/>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <xs:element name="end" type="DateTimePair" minOccurs="0"/>     <xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>   </xs:sequence> </xs:complexType>

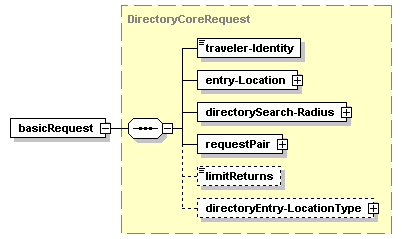

element DirectoryNameRequest/basicRequest

diagram
type	DirectoryCoreRequest
properties	isRef  0 content  complex
children	traveler-Identity entry-Location directorySearch-Radius requestPair limitReturns directoryEntry-LocationType
source	<xs:element name="basicRequest" type="DirectoryCoreRequest"/>

element DirectoryNameRequest/directoryEntry-Name

diagram
type	Name
properties	isRef  0 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="directoryEntry-Name" type="Name"/>

element DirectoryNameRequest/start

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element DirectoryNameRequest/end

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

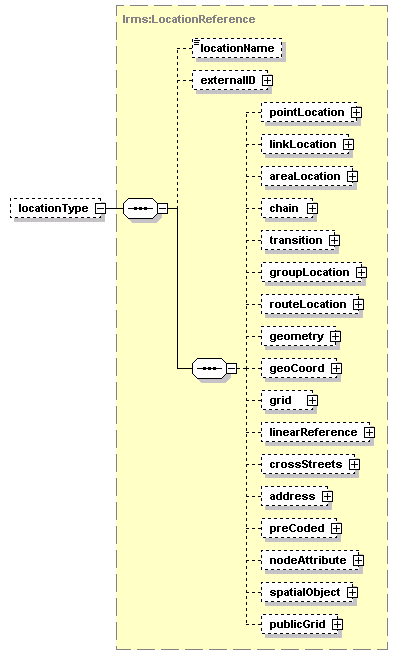

element DirectoryNameRequest/locationType

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>
