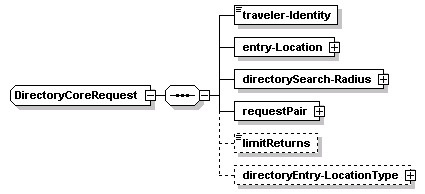

complexType DirectoryCoreRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	traveler-Identity entry-Location directorySearch-Radius requestPair limitReturns directoryEntry-LocationType
used by	elements  DirectoryNameRequest/basicRequest DirectoryRequest/coreRequest
source	<xs:complexType name="DirectoryCoreRequest">   <xs:sequence>     <xs:element name="traveler-Identity" type="Traveler-Identity"/>     <xs:element name="entry-Location" type="RouteOrLocation"/>     <xs:element name="directorySearch-Radius" type="SearchRadius"/>     <xs:element name="requestPair" type="DirectoryTypePair"/>     <xs:element name="limitReturns" type="LimitReturns" minOccurs="0"/>     <xs:element name="directoryEntry-LocationType" type="lrms:LocationReference" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DirectoryCoreRequest/traveler-Identity

diagram
type	Traveler-Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="traveler-Identity" type="Traveler-Identity"/>

element DirectoryCoreRequest/entry-Location

diagram
type	RouteOrLocation
properties	isRef  0 content  complex
children	route id location
source	<xs:element name="entry-Location" type="RouteOrLocation"/>

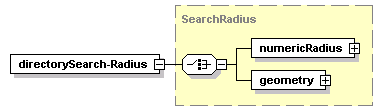

element DirectoryCoreRequest/directorySearch-Radius

diagram
type	SearchRadius
properties	isRef  0 content  complex
children	numericRadius geometry
source	<xs:element name="directorySearch-Radius" type="SearchRadius"/>

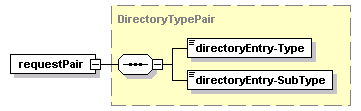

element DirectoryCoreRequest/requestPair

diagram
type	DirectoryTypePair
properties	isRef  0 content  complex
children	directoryEntry-Type directoryEntry-SubType
source	<xs:element name="requestPair" type="DirectoryTypePair"/>

element DirectoryCoreRequest/limitReturns

diagram
type	LimitReturns
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1
source	<xs:element name="limitReturns" type="LimitReturns" minOccurs="0"/>

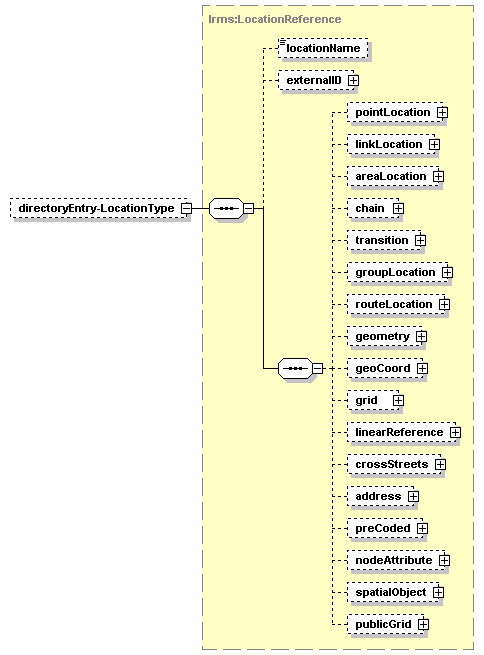

element DirectoryCoreRequest/directoryEntry-LocationType

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="directoryEntry-LocationType" type="lrms:LocationReference" minOccurs="0"/>
