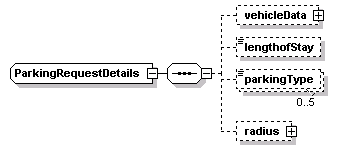

complexType ParkingRequestDetails

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	vehicleData lengthofStay parkingType radius
used by	element  InformationRequest/parkingRequest
source	<xs:complexType name="ParkingRequestDetails">   <xs:sequence>     <xs:element name="vehicleData" type="VehicleRestrictions" minOccurs="0"/>     <xs:element name="lengthofStay" type="TimeInterval" minOccurs="0"/>     <xs:element name="parkingType" type="tcip:PI-ParkingType" minOccurs="0" maxOccurs="5"/>     <xs:element name="radius" type="lrms:Distance" minOccurs="0"/>   </xs:sequence> </xs:complexType>

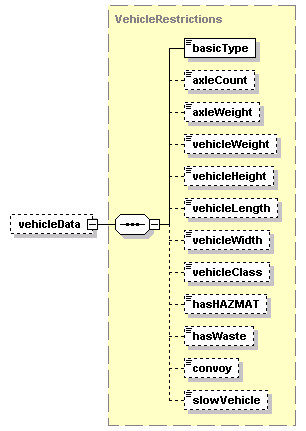

element ParkingRequestDetails/vehicleData

diagram
type	VehicleRestrictions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	basicType axleCount axleWeight vehicleWeight vehicleHeight vehicleLength vehicleWidth vehicleClass hasHAZMAT hasWaste convoy slowVehicle
source	<xs:element name="vehicleData" type="VehicleRestrictions" minOccurs="0"/>

element ParkingRequestDetails/lengthofStay

diagram
type	TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="lengthofStay" type="TimeInterval" minOccurs="0"/>

element ParkingRequestDetails/parkingType

diagram
type	tcip:PI-ParkingType
properties	isRef  0 minOcc  0 maxOcc  5 content  simple
source	<xs:element name="parkingType" type="tcip:PI-ParkingType" minOccurs="0" maxOccurs="5"/>

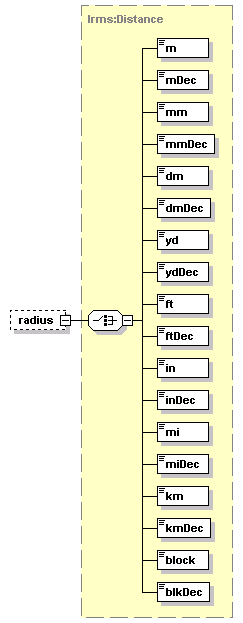

element ParkingRequestDetails/radius

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="radius" type="lrms:Distance" minOccurs="0"/>
