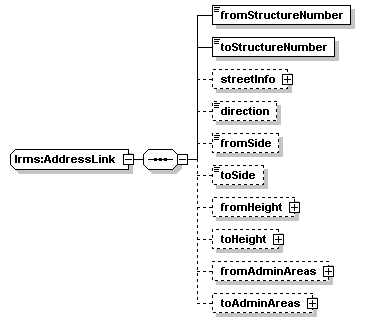

complexType lrms:AddressLink

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	fromStructureNumber toStructureNumber streetInfo direction fromSide toSide fromHeight toHeight fromAdminAreas toAdminAreas
used by	elements  lrms:Address/addressLink lrms:LinkLocation/addressLink
source	<xs:complexType name="AddressLink">   <xs:sequence>     <xs:element name="fromStructureNumber" type="Text-name255"/>     <xs:element name="toStructureNumber" type="Text-name255"/>     <xs:element name="streetInfo" type="StreetInfo" minOccurs="0"/>     <xs:element name="direction" type="Direction" minOccurs="0"/>     <xs:element name="fromSide" type="Side" minOccurs="0"/>     <xs:element name="toSide" type="Side" minOccurs="0"/>     <xs:element name="fromHeight" type="Height" minOccurs="0"/>     <xs:element name="toHeight" type="Height" minOccurs="0"/>     <xs:element name="fromAdminAreas" type="AdminAreaGroup" minOccurs="0"/>     <xs:element name="toAdminAreas" type="AdminAreaGroup" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element lrms:AddressLink/fromStructureNumber

diagram
type	lrms:Text-name255
properties	isRef  0 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="fromStructureNumber" type="Text-name255"/>

element lrms:AddressLink/toStructureNumber

diagram
type	lrms:Text-name255
properties	isRef  0 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="toStructureNumber" type="Text-name255"/>

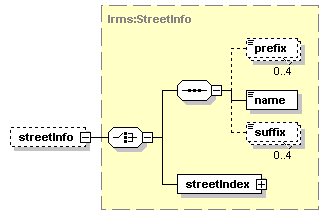

element lrms:AddressLink/streetInfo

diagram
type	lrms:StreetInfo
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	prefix name suffix streetIndex
source	<xs:element name="streetInfo" type="StreetInfo" minOccurs="0"/>

element lrms:AddressLink/direction

diagram
type	lrms:Direction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="direction" type="Direction" minOccurs="0"/>

element lrms:AddressLink/fromSide

diagram
type	lrms:Side
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="fromSide" type="Side" minOccurs="0"/>

element lrms:AddressLink/toSide

diagram
type	lrms:Side
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="toSide" type="Side" minOccurs="0"/>

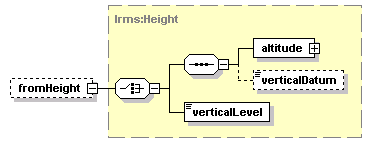

element lrms:AddressLink/fromHeight

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="fromHeight" type="Height" minOccurs="0"/>

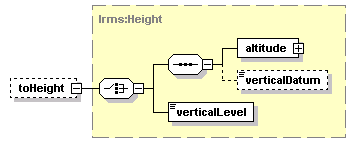

element lrms:AddressLink/toHeight

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="toHeight" type="Height" minOccurs="0"/>

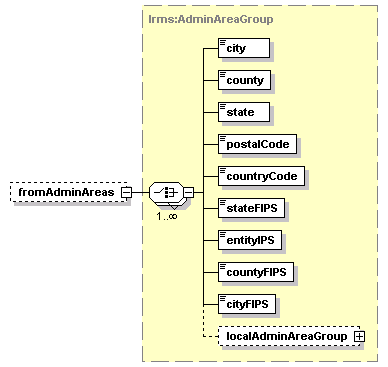

element lrms:AddressLink/fromAdminAreas

diagram
type	lrms:AdminAreaGroup
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	city county state postalCode countryCode stateFIPS entityIPS countyFIPS cityFIPS localAdminAreaGroup
source	<xs:element name="fromAdminAreas" type="AdminAreaGroup" minOccurs="0"/>

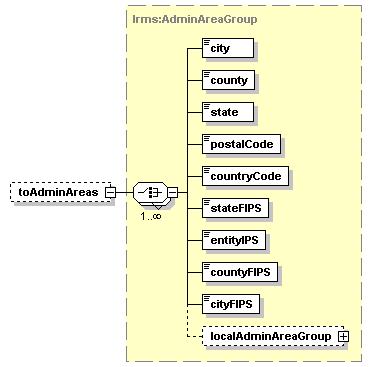

element lrms:AddressLink/toAdminAreas

diagram
type	lrms:AdminAreaGroup
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	city county state postalCode countryCode stateFIPS entityIPS countyFIPS cityFIPS localAdminAreaGroup
source	<xs:element name="toAdminAreas" type="AdminAreaGroup" minOccurs="0"/>
