complexType lrms:Height

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	altitude verticalDatum verticalLevel
used by	elements  tcip:CPTStoppoint/altitude lrms:GeoLocationDelta/deltaHeight WeatherInformation/elevationsAbove WeatherInformation/elevationsBelow lrms:LinearReference/endheight lrms:AddressLink/fromHeight lrms:AddressPoint/height lrms:CrossStreetsLink/height lrms:CrossStreetsPoint/height lrms:GeoLocation/height lrms:PointOffset/height lrms:PolarCoordinates/height lrms:PublicGridLocalReference/height lrms:PublicGridStatePlane/height lrms:Geometry/nodeOffset/offsetHeight lrms:LinearReference/startHeight lrms:AddressLink/toHeight
source	<xs:complexType name="Height">   <xs:choice>     <xs:sequence>       <xs:element name="altitude" type="Distance"/>       <xs:element name="verticalDatum" type="VerticalDatum" minOccurs="0"/>     </xs:sequence>     <xs:element name="verticalLevel" type="VerticalLevel"/>   </xs:choice> </xs:complexType>

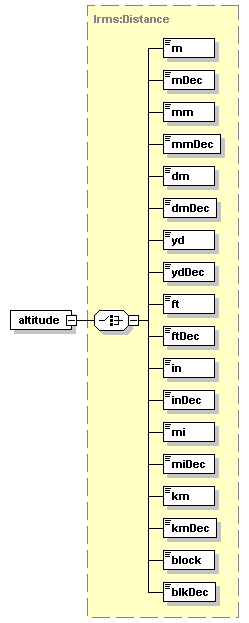

element lrms:Height/altitude

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="altitude" type="Distance"/>

element lrms:Height/verticalDatum

diagram
type	lrms:VerticalDatum
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="verticalDatum" type="VerticalDatum" minOccurs="0"/>

element lrms:Height/verticalLevel

diagram
type	lrms:VerticalLevel
properties	isRef  0 content  simple
facets	minInclusive  -128
source	<xs:element name="verticalLevel" type="VerticalLevel"/>
