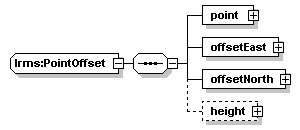

complexType lrms:PointOffset

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	point offsetEast offsetNorth height
used by	element  lrms:PointLocation/pointOffset
source	<xs:complexType name="PointOffset">   <xs:sequence>     <xs:element name="point" type="PointLocation"/>     <xs:element name="offsetEast" type="Distance"/>     <xs:element name="offsetNorth" type="Distance"/>     <xs:element name="height" type="Height" minOccurs="0"/>   </xs:sequence> </xs:complexType>

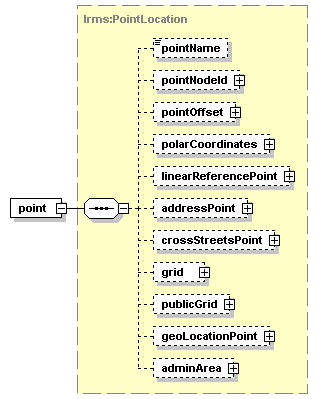

element lrms:PointOffset/point

diagram
type	lrms:PointLocation
properties	isRef  0 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="point" type="PointLocation"/>

element lrms:PointOffset/offsetEast

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="offsetEast" type="Distance"/>

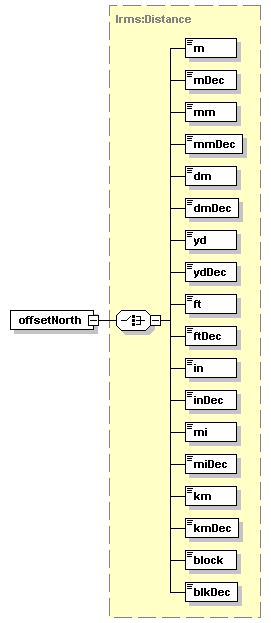

element lrms:PointOffset/offsetNorth

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="offsetNorth" type="Distance"/>

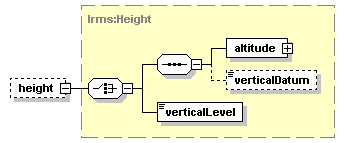

element lrms:PointOffset/height

diagram
type	lrms:Height
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	altitude verticalDatum verticalLevel
source	<xs:element name="height" type="Height" minOccurs="0"/>
