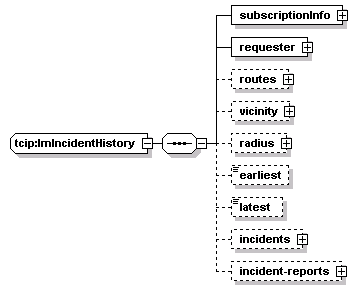

complexType tcip:ImIncidentHistory
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo requester routes vicinity radius earliest latest incidents incident-reports
used by
element tcip:imIncidentHistory
source <xs:complexType name="ImIncidentHistory">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="requester" type="CPTEmployeeIden"/>
    <xs:element name="routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="vicinity" type="lrms:GeoLocation" minOccurs="0"/>
    <xs:element name="radius" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="earliest" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="latest" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="incidents" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="incident" type="IMIncidentIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="incident-reports" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:element name="incident-report" type="IMIncidentInfo"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:ImIncidentHistory/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:ImIncidentHistory/requester
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="requester" type="CPTEmployeeIden"/>

element tcip:ImIncidentHistory/routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route
source <xs:element name="routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:ImIncidentHistory/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:ImIncidentHistory/vicinity
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
source <xs:element name="vicinity" type="lrms:GeoLocation" minOccurs="0"/>

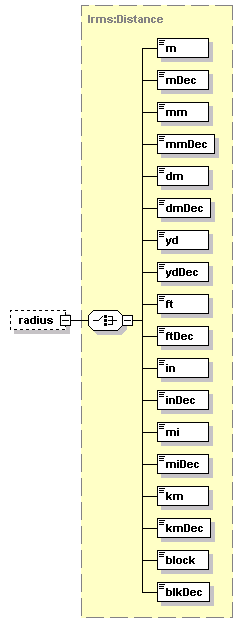

element tcip:ImIncidentHistory/radius
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="radius" type="lrms:Distance" minOccurs="0"/>

element tcip:ImIncidentHistory/earliest
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="earliest" type="CPT-DateTime" minOccurs="0"/>

element tcip:ImIncidentHistory/latest
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="latest" type="CPT-DateTime" minOccurs="0"/>

element tcip:ImIncidentHistory/incidents
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children incident
source <xs:element name="incidents" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="incident" type="IMIncidentIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

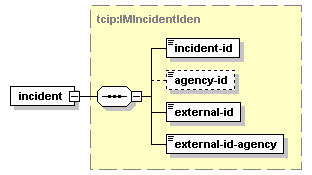

element tcip:ImIncidentHistory/incidents/incident
diagram
type tcip:IMIncidentIden
properties
isRef 0
content complex
children incident-id agency-id external-id external-id-agency
source <xs:element name="incident" type="IMIncidentIden"/>

element tcip:ImIncidentHistory/incident-reports
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children incident-report
source <xs:element name="incident-reports" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:element name="incident-report" type="IMIncidentInfo"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

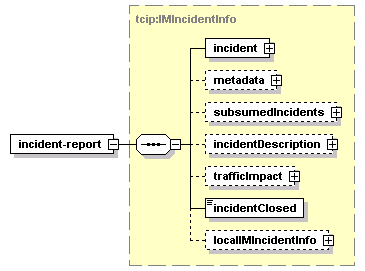

element tcip:ImIncidentHistory/incident-reports/incident-report
diagram
type tcip:IMIncidentInfo
properties
isRef 0
content complex
children incident metadata subsumedIncidents incidentDescription trafficImpact incidentClosed localIMIncidentInfo
source <xs:element name="incident-report" type="IMIncidentInfo"/>
