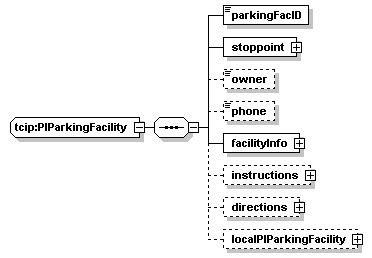

complexType tcip:PIParkingFacility

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	parkingFacID stoppoint owner phone facilityInfo instructions directions localPIParkingFacility
used by	elements  tcip:PINearestStop/parking/parking-item tcip:PiStoppointParking/parkingInfosets/parkingInfoset
source	<xs:complexType name="PIParkingFacility">   <xs:sequence>     <xs:element name="parkingFacID" type="PI-ParkingFacID"/>     <xs:element name="stoppoint" type="CPTStoppointIden"/>     <xs:element name="owner" type="PI-ParkingOwnerName" minOccurs="0"/>     <xs:element name="phone" type="PI-ParkingFacPhone" minOccurs="0"/>     <xs:element name="facilityInfo" type="atis:ParkingLotInformation"/>     <xs:element name="instructions" type="atis:ParkingInstructions" minOccurs="0"/>     <xs:element name="directions" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="direction" type="atis:ManeuverInstruction"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localPIParkingFacility" type="local:PIParkingFacility" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:PIParkingFacility/parkingFacID

diagram
type	tcip:PI-ParkingFacID
properties	isRef  0 content  simple
source	<xs:element name="parkingFacID" type="PI-ParkingFacID"/>

element tcip:PIParkingFacility/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:PIParkingFacility/owner

diagram
type	tcip:PI-ParkingOwnerName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  60
source	<xs:element name="owner" type="PI-ParkingOwnerName" minOccurs="0"/>

element tcip:PIParkingFacility/phone

diagram
type	tcip:PI-ParkingFacPhone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  16
source	<xs:element name="phone" type="PI-ParkingFacPhone" minOccurs="0"/>

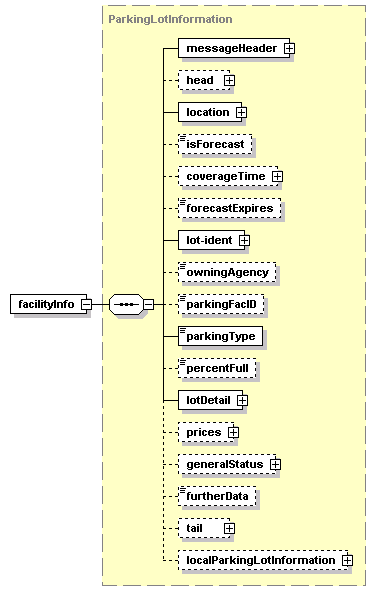

element tcip:PIParkingFacility/facilityInfo

diagram
type	ParkingLotInformation
properties	isRef  0 content  complex
children	messageHeader head location isForecast coverageTime forecastExpires lot-ident owningAgency parkingFacID parkingType percentFull lotDetail prices generalStatus furtherData tail localParkingLotInformation
source	<xs:element name="facilityInfo" type="atis:ParkingLotInformation"/>

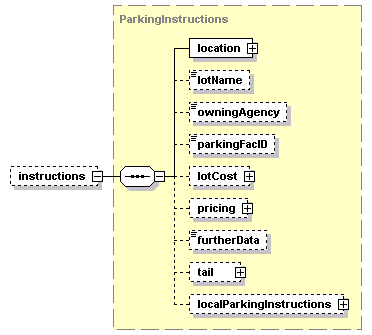

element tcip:PIParkingFacility/instructions

diagram
type	ParkingInstructions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	location lotName owningAgency parkingFacID lotCost pricing furtherData tail localParkingInstructions
source	<xs:element name="instructions" type="atis:ParkingInstructions" minOccurs="0"/>

element tcip:PIParkingFacility/directions

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	direction
source	<xs:element name="directions" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="direction" type="atis:ManeuverInstruction"/>     </xs:sequence>   </xs:complexType> </xs:element>

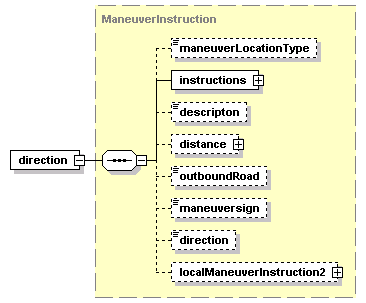

element tcip:PIParkingFacility/directions/direction

diagram
type	ManeuverInstruction
properties	isRef  0 content  complex
children	maneuverLocationType instructions descripton distance outboundRoad maneuversign direction localManeuverInstruction2
source	<xs:element name="direction" type="atis:ManeuverInstruction"/>

element tcip:PIParkingFacility/localPIParkingFacility

diagram
type	PIParkingFacility
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localPIParkingFacility" type="local:PIParkingFacility" minOccurs="0"/>
